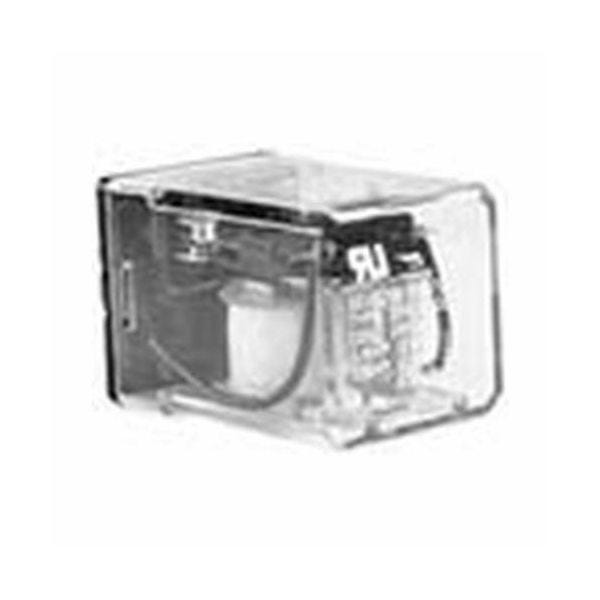

SELECTA SR67S200A7
RELAY 120V DPDT
SKU
832960
SELECTA® General Purpose Relay, 50/60 Hz, 120 VAC Coil, DPDT, 10 A at 230 VAC/28 VDC Contact, 8 Pins, 2 Poles, Socket Mount, Octal Terminal, -45 to 70 deg C, 2.125 in L x 1.312 in W x 1.25 in H
- It has dielectric strength of 1500 VAC at 50/60 Hz between coil/contact and 500 VAC at 50/60 Hz between contacts
- It offers maximum ON/OFF switching of 300 operations/minute mechanically and 30 operations/minute electrically
- Relay has 50 milli-Ohm contact resistance
- It has mechanical and electrical life expectancy of 10000000 and 100000 operations/minute
| Contact Form | DPDT |
|---|---|
| Dimensions | 2.125 in L x 1.312 in W x 1.25 in H |
| Temperature Rating | -45 to 70 deg C |
| Contact Rating | 10 A at 230 VAC/28 VDC |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 2 |
| Coil Voltage | 120 VAC |
| Terminal Type | Octal |
| Mounting Type | Socket |
| Number of Pins | 8 |
| Brand | Selecta Products |
| Voltage | 120V |
