DeWALT 7302SD4
1/4 X 2-1/4 SS POWER STUD
SKU
653533

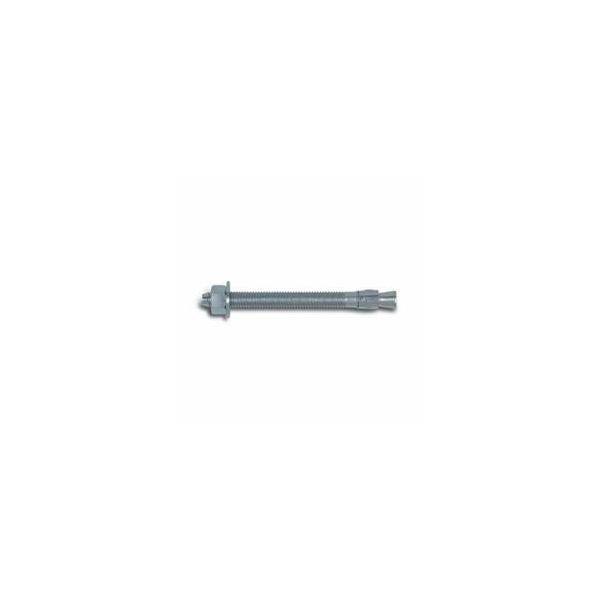

DeWALT® Power-Stud+® SD4 Wedge Expansion Anchor, 1/4 in Dia, 2-1/4 in Overall Length, 1-1/4 in Thread Length, 304 Stainless Steel, 1-3/4 in Minimum Embedment Depth, 1/4 in Drill, 1/4-20, Threaded Stud Head, UNC, 1/4 in Maximum Work Thickness
- Knurled mandrel design provides consistent performance in cracked concrete and helps prevent galling during service life
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard clearance fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
- Corrosion resistant stainless steel anchors
- 7/32 in nut height
- 7/16 in wrench
- 6 ft-lbf installation torque
- 5/16 in fixture clearance hole
| Material | 304 Stainless Steel |
|---|---|
| Head Type | Threaded Stud |
| Maximum Work Thickness | 1/4 in |
| Thread Size | 1/4-20 |
| Diameter | 1/4 in |
| Overall Length | 2-1/4 in |
| Thread Type | UNC |
| Minimum Embedment Depth | 1-3/4 in |
| Drill Size | 1/4 in |
| Thread Length | 1-1/4 in |
| Maximum Work Thickness | 1/4 in |
| Head Type | Threaded Stud |
| Brand | DeWalt |
