BrassCraft SWB00-18N
*3/4 X 18 SS WH CONNECTOR
SKU
597763

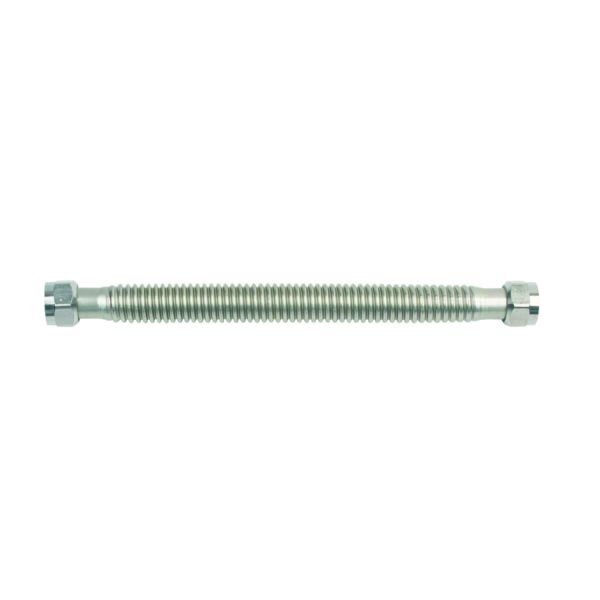

BrassCraft® ProCoat® Lead Free Water Heater Connector, Series: SWB00, 3/4 in Nominal, FNPT, 3/4 in Inside Dia, 18 in Length, 125 psi Working, 40 to 180 deg F, Stainless Steel, Domestic
- Corrugated stainless steel delivers superior flexibility without kinking or flattening
- Full flow, maximum performance with a 3/4 in internal diameter
- Exclusive ProCoat® clear coat, provides superior corrosion resistance to deterioration from harsh chemicals, UV rays and salt
- Integrated dielectric sleeve isolates dissimilar metals within the waterway to help protect the connector from internal corrosion
- Requires less torque to seal with a pliable nitrile rubber washer, especially on rough nipple surfaces
- 100% leak tested
| Inside Diameter | 3/4 in |
|---|---|
| Material | Stainless Steel |
| Series | SWB00 |
| Length | 18 in |
| Temperature Rating | 40 to 180 deg F |
| Nominal Size | 3/4 in |
| Domestic/Import | Domestic |
| Working Pressure | 125 psi |
| End Style | FNPT |
| Brand | BrassCraft |
