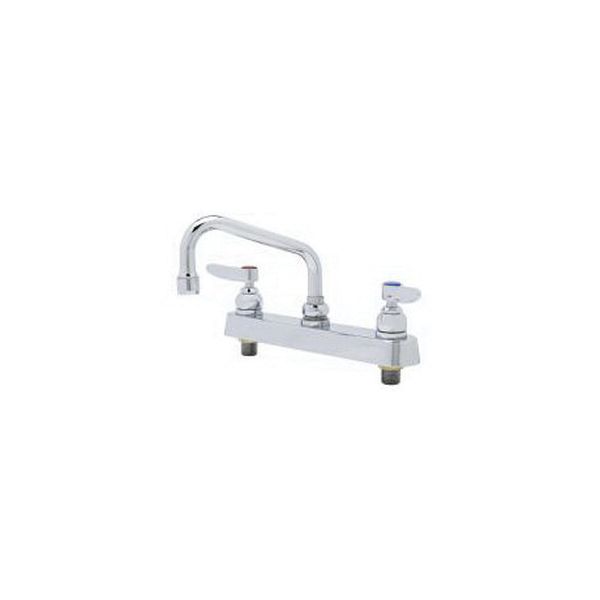

T & S Workboard Mixing Manual Faucet, 2.2 gpm Flow Rate, 8 in Center Distance, Tubular Spout, 6 in Spout Reach, 3-1/16 in Spout Height, Lever Handle, 1/2 in Connection, MNPT Connection, Spray Pattern: Aerated, 1/4 in Maximum Deck Thickness, Wall Mounting, Quarter-Turn Eterna Compression, 10-1/2 in W x 6-3/16 in H Dimensions, Brass, Polished Chrome, Domestic
- 6 in swing nozzles
- 2.2 gpm aerator, series 1 (B-0199-01)
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- Lever handle with color coded index
- Tailpiece and nut to provide 1/4 in MNPT
- Polished chrome escutcheon
- 40 to 140 deg F rated operating
- 2.2 gpm at 60 psi
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Low lead content (0.25% max)
- Polished chrome metal handle and escutcheon
| Maximum Deck Thickness | 1/4 in |
|---|---|
| Spray Pattern | Aerated |
| Handle Type | Lever |
| Connection Type | MNPT |
| Spout Height | 3-1/16 in |
| Domestic/Import | Domestic |
| Spout Reach | 6 in |
| Dimensions | 10-1/2 in W x 6-3/16 in H |
| Material | Brass |
| Center Distance | 8 in |
| Connection Size | 1/2 in |
| Flow Rate | 2.2 gpm |
| Valve/Cartridge Type | Quarter-Turn Eterna Compression |
| Finish/Color | Polished Chrome |
| Spout Type | Tubular |
| Mounting Type | Wall |
| Brand | T & S Brass |
| Finish | Chrome |
