T & S B-1141
4"CTR T&S GN FCT W/LEVER HDL
SKU
402332

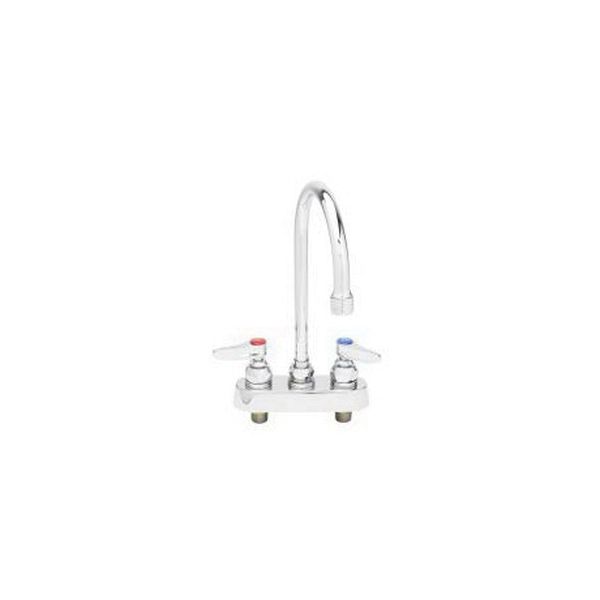

T & S Workboard Mixing Manual Faucet, 2.2 gpm Flow Rate, 4 in Center Distance, Tubular Spout, 5-3/4 in Spout Reach, 6-15/16 in Spout Height, Lever Handle, 1/2 in Connection, MNPT Connection, Spray Pattern: Aerated, 1/4 in Maximum Deck Thickness, Deck Mounting, Quarter-Turn Eterna Compression, 8-5/8 in W x 11-3/8 in H Dimensions, Brass, Polished Chrome, Domestic
- 5-3/4 in swivel gooseneck
- 6 in nozzles
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- Lever handle with color coded index
- Tailpiece and nut to provide 1/4 in MNPT
- Polished chrome escutcheon
- 40 to 140 deg F rated operating
- 2.2 gpm at 60 psi
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Low lead content (0.25% max)
- Polished chrome metal handle and escutcheon
| Valve/Cartridge Type | Quarter-Turn Eterna Compression |
|---|---|
| Handle Type | Lever |
| Finish/Color | Polished Chrome |
| Connection Type | MNPT |
| Flow Rate | 2.2 gpm |
| Spout Type | Tubular |
| Spray Pattern | Aerated |
| Dimensions | 8-5/8 in W x 11-3/8 in H |
| Center Distance | 4 in |
| Maximum Deck Thickness | 1/4 in |
| Mounting Type | Deck |
| Connection Size | 1/2 in |
| Domestic/Import | Domestic |
| Spout Height | 6-15/16 in |
| Material | Brass |
| Spout Reach | 5-3/4 in |
| Brand | T & S Brass |
