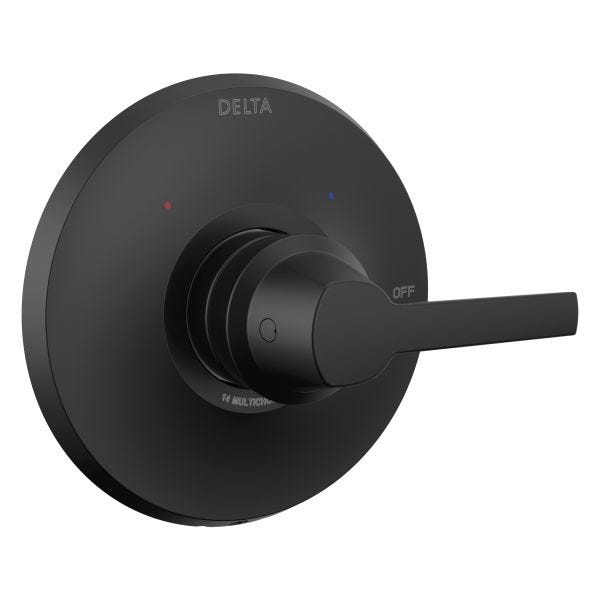

DELTA T14072-BL

DELTA® Valve Trim Only, Series: Monitor® 14 Series, Galeon™ Collection, Valve Flow Rate 6 gpm, 1.75 gpm Shower Flow Rate, 1 Handles, Lever Handle, 6-5/8 in Dia x 3-1/2 in D Trim, Pressure Balanced, Hand Shower: No, 1 Spray Functions, 60 to 80 psi Pressure, Wall Mounting, For Use With: R10000 Series MultiChoice® Universal Rough Valve Body, Zinc, Matte Black, 3-1/2 in L x 7 in W x 6-1/2 in H Dimensions, Import, Commercial/Residential Commercial/Residential

• Monitor pressure balance valve keeps water temperature within a safe +/-3.6 deg F (+/-1.7 deg C) helping to protect you from sudden changes in hot or cold water pressure
• Trim kit only, must order MultiChoice universal valve rough (R10000 series) separately to complete the unit
• Temperature only controlled with handle
• Stem extension kit RP77991 can be ordered separately to allow for an additional 1-3/4 in wall thickness
• Maintains a balanced pressure of hot and cold water even when a valve is turned on/off elsewhere in the system
• Field adjustable to limit handle rotation into hot water zone
• 120 deg maximum handle rotation
• All parts are replaceable from the front of the valve
• Tub port maximum flow rate 6 gpm at 60 psi with R10000-UNBX
• Shower arm overall horizontal length 5-1/2 in (138 mm) including threaded ends
• Thread-on tub spout connection
