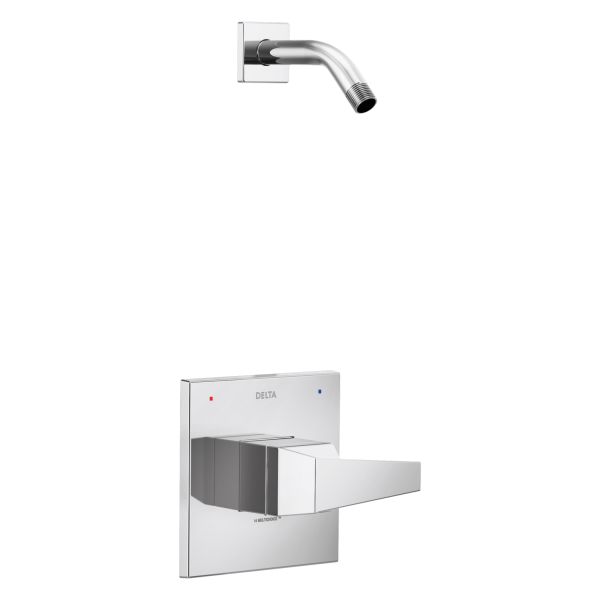

Delta Faucet Company T14243-PR-LHD
TRILLIAN 14SER SHR TRM L/H CHR
SKU
888806
DELTA® Shower Only, Square, Series: Monitor® 14 Series, Trillian™ Collection, Valve Flow Rate 6 gpm, 1.75 gpm Shower Flow Rate, 1 Handles, Lever Handle, 6-5/8 in W x 4-1/16 in D x 6-5/8 in H Trim, Pressure Balanced, Hand Shower: No, 1 Spray Functions, 60 to 80 psi Pressure, Wall Mounting, For Use With: R10000 Series MultiChoice® Universal Rough Valve Body, Zinc, Lumicoat™ Polished Chrome, 4.02 in L x 6.6 in W x 6.6 in H Dimensions, Import, Commercial/Residential Commercial/Residential
- Lumicoat™ finishes easily wipe clean and are guaranteed to resist mineral buildup and hard water stains on the product's most commonly touched areas
- Trim kit only, must order MultiChoice® universal valve rough separately to complete the unit
- Monitor® pressure balance valve keeps water temperature within a safe +/-3.6 deg F (+/-1.7 deg C) helping to protect you from sudden changes in hot or cold water pressure
- Add the finishing touch with a DELTA® showerhead (sold separately) to personalize your shower
- ADA compliant metal lever handle
- Temperature only controlled with handle
- Back-to-back installation capability
- Red/blue temperature indicator markings
- Maintains a balanced pressure of hot and cold water even when a valve is turned on/off elsewhere in the system
- Field adjustable to limit handle rotation into hot water zone
- 120 deg maximum handle rotation
- All parts are replaceable from the front of the valve
- Maximum flow rate 1.75 gpm at 80 psi (6.6 Lpm at 550 kPa)
- Tub port maximum flow rate 6 gpm at 60 psi with R10000-UNBX
- Shower arm overall horizontal length 5-1/2 in (138 mm) including threaded ends
- Less showerhead
- Rough-in sold separately
| Trim Size | 6-5/8 in W x 4-1/16 in D x 6-5/8 in H |
|---|---|
| Series | Monitor® 14 Series |
| Pressure Rating | 60 to 80 psi |
| Domestic/Import | Import |
| Valve Flow Rate | 6 gpm |
| Shower Flow Rate | 1.75 gpm |
| Suitable For Use With | R10000 Series MultiChoice® Universal Rough Valve Body |
| Material | Zinc |
| Number of Spray Functions | 1 |
| Valve/Cartridge Type | Pressure Balanced |
| Collection | Trillian™ |
| Hand Shower Yes/No | No |
| Dimensions | 4.02 in L x 6.6 in W x 6.6 in H |
| Mounting Type | Wall |
| Finish/Color | Lumicoat™ Polished Chrome |
| Commercial/Residential | Commercial/Residential |
| Number of Handles | 1 |
| Type | Square |
| Handle Type | Lever |
| Brand | Delta |
| Finish | Lumicoat Chrome |
