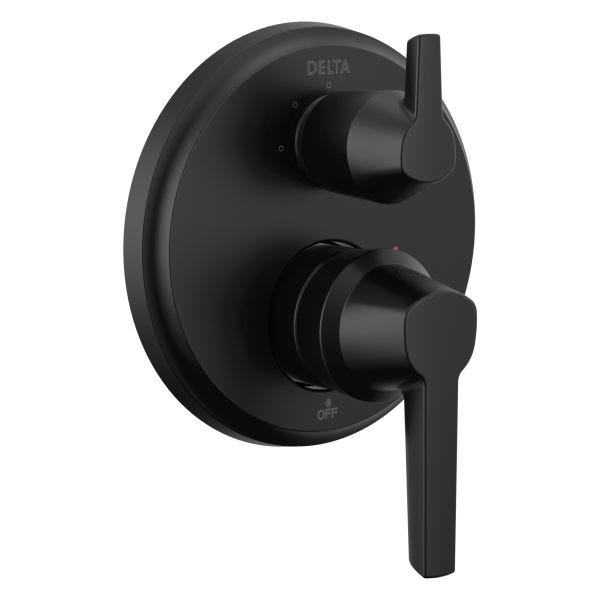

Delta Faucet Company T24871-BL

GALEON 14S INTEGRATED DIV TRIM
SKU
902321
The product cannot be delivered by Truck Shipping

DELTA® Integrated Diverter Trim, Series: Monitor® 14 Series, Galeon™ Collection, 5 gpm Shower Flow Rate, 2 Handles, Lever Handle, 6-3/4 in Dia x 3-1/2 in D Trim, Pressure Balanced, Hand Shower: No, 3 Spray Functions, 60 psi Pressure, Wall Mounting, For Use With: R22000 Series MultiChoice® Universal Rough Valve Body, Zinc, Matte Black, 3-1/2 in L x 8-1/4 in W x 6-3/4 in H Dimensions, Import, Commercial/Residential Commercial/Residential

  • DELTA® MultiChoice® integrated shower diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
  • Top handle controls diverter functions
  • Bottom handle controls on/off and temperature
  • Three position diverter
  • Two individual and one shared position
  • Order cartridge RP71717 (sold separately) for two individual positions only and no shared positions
  • Monitor® 14 series single function pressure balance cartridge
  • Monitor® pressure balance valve keeps water temperature within a safe +/-3.6 deg F (+/-1.7 deg C) helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® universal integrated diverter rough separately to complete the unit
  • Rough-in valve body (R22000 series) sold separately
  • Main control utilizes single function pressure balanced cartridge
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on/off elsewhere in the system
  • Field adjustable to limit handle rotation into hot water zone
  • Bottom handle 120 deg maximum rotation
  • Red/blue indicator markings
  • Three function diverter for two individual positions, one shared position
  • Maximum system flow rate 5 gpm at 60 psi with R22000
More Information
Mounting Type Wall
Commercial/Residential Commercial/Residential
Pressure Rating 60 psi
Handle Type Lever
Finish/Color Matte Black
Material Zinc
Domestic/Import Import
Series Monitor® 14 Series
Hand Shower Yes/No No
Trim Size 6-3/4 in Dia x 3-1/2 in D
Valve/Cartridge Type Pressure Balanced
Collection Galeon™
Number of Handles 2
Dimensions 3-1/2 in L x 8-1/4 in W x 6-3/4 in H
Number of Spray Functions 3
Suitable For Use With R22000 Series MultiChoice® Universal Rough Valve Body
Shower Flow Rate 5 gpm
Brand Delta
Type Diverter Valve
