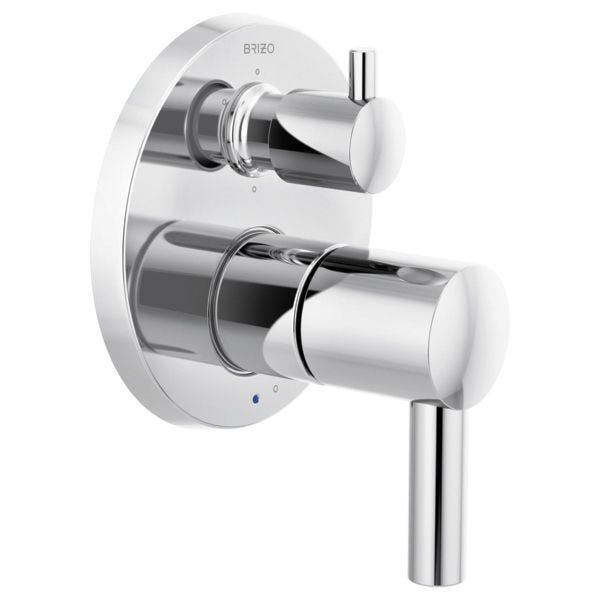

Brizo T75P675-PCLHP
ODIN 2HNDL TRIM 6FUNC CHR
SKU
881004
Brizo® Valve Trim, Odin® Collection, 5 gpm Shower Flow Rate, 6-5/8 in Dia x 3-1/2 in D Trim, Pressure Balanced, 1/2 in Valve Inlet Connection, 1/2 in Valve Outlet Connection, Hand Shower: No, 6 Spray Functions, 60 psi Pressure, Wall Mounting, For Use With: R75000 Series MultiChoice® Universal Integrated Shower Diverter Rough Valve, Brass, Polished Chrome, 3.5 in L x 6.63 in W x 6.63 in H Dimensions, Import, Commercial/Residential Commercial/Residential
- Single function pressure balance cartridge
- Cartridges ship with the trim
- Valve handle adjusts temperature
- Diverter has three individual and three shared positions
- 1/2 in universal inlets/outlets
- Maintains a balanced pressure of hot and cold water even when a valve is turned on/off elsewhere in the system
- Back-to-back installation capability
- Maximum system flow rate 5 gpm at 60 psi with R75000
- Top handle controls diverter functions
- Bottom handle controls on/off and temperature
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 120 deg maximum rotation
- Red/blue temperature indicator markings
- Standard installation allows up to 1-1/8 in finished wall thickness
- Without handle
| Mounting Type | Wall |
|---|---|
| Commercial/Residential | Commercial/Residential |
| Pressure Rating | 60 psi |
| Finish/Color | Polished Chrome |
| Material | Brass |
| Domestic/Import | Import |
| Hand Shower Yes/No | No |
| Trim Size | 6-5/8 in Dia x 3-1/2 in D |
| Valve/Cartridge Type | Pressure Balanced |
| Collection | Odin® |
| Valve Inlet Connection | 1/2 in |
| Dimensions | 3.5 in L x 6.63 in W x 6.63 in H |
| Valve Outlet Connection | 1/2 in |
| Number of Spray Functions | 6 |
| Suitable For Use With | R75000 Series MultiChoice® Universal Integrated Shower Diverter Rough Valve |
| Shower Flow Rate | 5 gpm |
| Brand | Delta Brizo |
