HAYWARD TB1150STE
11/2 SOC/THD TU S80 PVC BV
SKU
285744

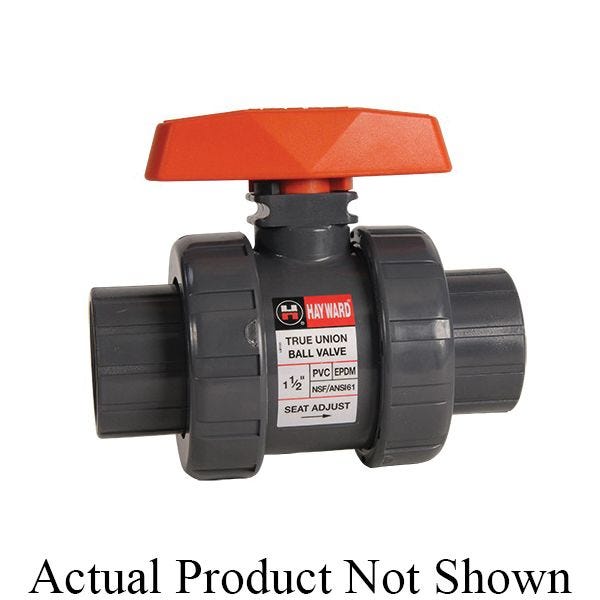

HAYWARD® True Union Ball Valve, Series: TB Series, 1-1/2 in Nominal, Socket/Thread End Style, 250 psi Pressure, 34 to 140 deg F, Full Port, T-Handle Actuator, PVC Ball, 6.85 in Inlet to Outlet Length, 3.92 in Top to Inlet Center, PVC Body, EPDM Seal and PTFE Seat Trim, EPDM Softgoods
- All true union ball valves are assembled with silicone free lubricant and have PTFE seats
- For actuator-ready
- EPDM O-ring
| Ball Material | PVC |
|---|---|
| Port Type | Full |
| Actuator Type | T-Handle |
| Inlet to Outlet Length | 6.85 in |
| Body Material | PVC |
| Top to Inlet Center | 3.92 in |
| Trim Material | EPDM Seal and PTFE Seat |
| Series | TB Series |
| Softgoods Material | EPDM |
| Temperature Rating | 34 to 140 deg F |
| Pressure Rating | 250 psi |
| End Style | Socket/Thread |
| Nominal Size | 1-1/2 in |
| Brand | Hayward |
| Size | 1-1/2" |
| Type | Valves |
