HAYWARD TB2100ST
1" CPVC TRUE UNION BV VITON
SKU
324236

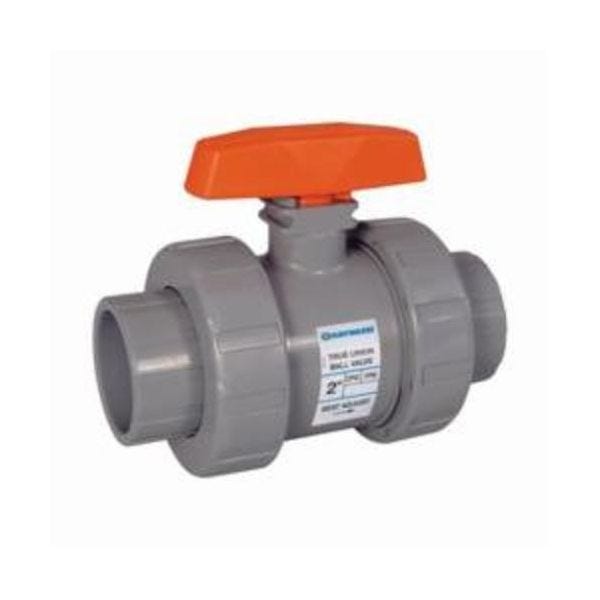

HAYWARD® True Union Ball Valve, Series: TB Series, 1 in Nominal, Socket x Thread End Style, 250 psi Pressure, 32 to 190 deg F, Full Port, Media: Gas/Oil/Water, 1 in Orifice, Lever Operated Actuator, PVC Ball, 5.44 in Inlet to Outlet Length, 3.32 in Top to Inlet Center, CPVC Body, PVC Stem and PTFE Seat Trim, EPDM/FKM Softgoods
- Assembled with silicone free lubricant
- 29 Cv
- Trigger style lockout handle is an option
- EPDM/fpm O-ring
| End Style | Socket x Thread |
|---|---|
| Body Material | CPVC |
| Pressure Rating | 250 psi |
| Inlet to Outlet Length | 5.44 in |
| Softgoods Material | EPDM/FKM |
| Ball Material | PVC |
| Media | Gas/Oil/Water |
| Top to Inlet Center | 3.32 in |
| Series | TB Series |
| Trim Material | PVC Stem and PTFE Seat |
| Temperature Rating | 32 to 190 deg F |
| Actuator Type | Lever Operated |
| Port Type | Full |
| Orifice Size | 1 in |
| Nominal Size | 1 in |
| Brand | Hayward |
| Size | 1" |
| Type | Valves |
