HAYWARD TB2250SE
21/2" CPVC TU BALL VALVE
SKU
370876

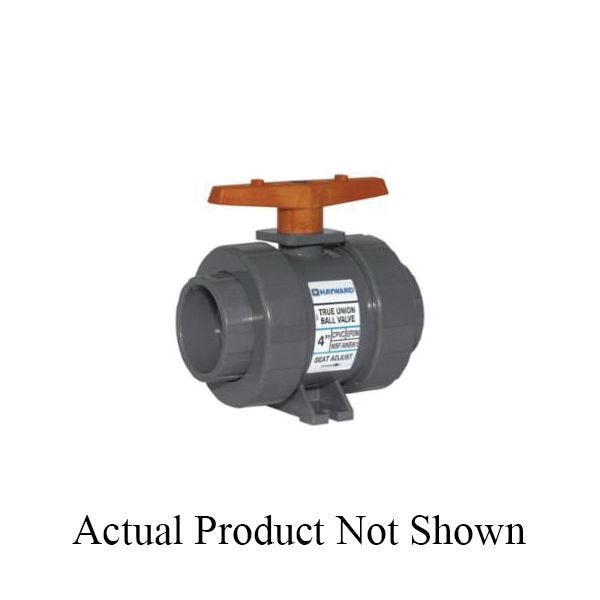

HAYWARD® True Union Ball Valve, Series: TB Series, 2-1/2 in Nominal, Socket, 235 psi, 70 deg F, Full Port, 2-3/4 in Orifice, 10.68 in Inlet to Outlet Length, 6.46 in Top to Inlet Center, CPVC Body, PTFE Seat Trim, EPDM Softgoods
- Double O-Ring stem seal
- Easy to service
- Easily automated
- 235 psi at 70 deg F non-shock
- EPDM O-ring
| End Style | Socket |
|---|---|
| Body Material | CPVC |
| Pressure Rating | 235 psi |
| Inlet to Outlet Length | 10.68 in |
| Softgoods Material | EPDM |
| Top to Inlet Center | 6.46 in |
| Series | TB Series |
| Trim Material | PTFE Seat |
| Temperature Rating | 70 deg F |
| Port Type | Full |
| Orifice Size | 2-3/4 in |
| Nominal Size | 2-1/2 in |
| Brand | Hayward |
| Size | 2-1/2" |
| Type | Valves |
