Eaton Wiring Devices TC132
0.30-0.43 DUSTTIGHT GRIP
SKU
765908

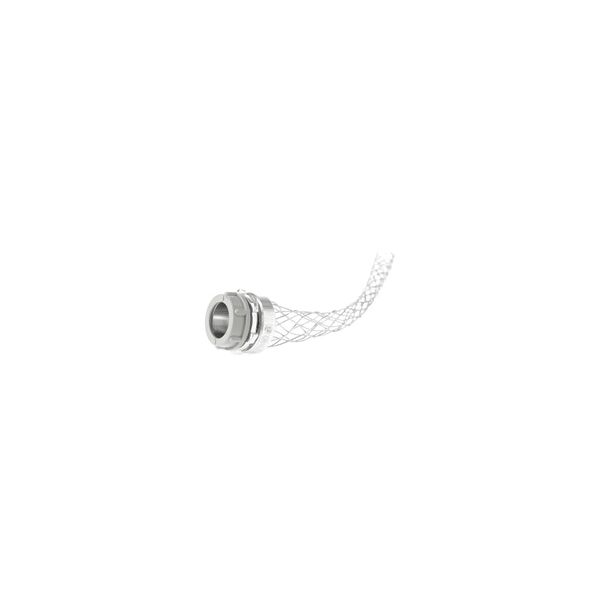

Eaton Wiring Devices Dust Tight Grip, Non-Insulated Strain Relief, 1/2 in Trade, Cable Openings: 0.32 to 0.43 in, MNPT Straight Connection, 3-3/4 in Mesh Length, Aluminum, Metallic, Gray
- Industrial grade strain relief wide range straight male dust tight grips
- Strain relief grips are used to connect cable enclosures and industrial equipment
- These grips prevent cable or conduit pull line at the point of termination due to tension
- Strain relief grips also distribute strain throughout the length of the mesh during bending, prolonging the life of the cable
- Wide range grips are constructed with steel mesh and locknut, aluminum threaded body, neoprene gasket and nylon insulated bushing
- Wide range grips are recommended for indoor use in wiring of enclosures, power boxes, machine tools, and power centers
- Provides secure cable termination and prevents cable pullout
- Absorbs longitudinal stresses placed on the point of termination caused by pulling or bending the cable
- Supplied with locknut, nylon insulated bushing and neoprene gasket to provide a dirt and dust free seal
- Constructed with steel mesh and aluminum threaded body adding to safety by extending cable life
- Wide range, single weave mesh construction
| Trade Size | 1/2 in |
|---|---|
| Connection Type | MNPT Straight |
| Type | Non-Insulated Strain Relief |
| Color | Gray |
| Finish | Metallic |
| Mesh Length | 3-3/4 in |
| Cable Openings | 0.32 to 0.43 in |
| Material | Aluminum |
| Brand | Eaton |
