Tekmar 712

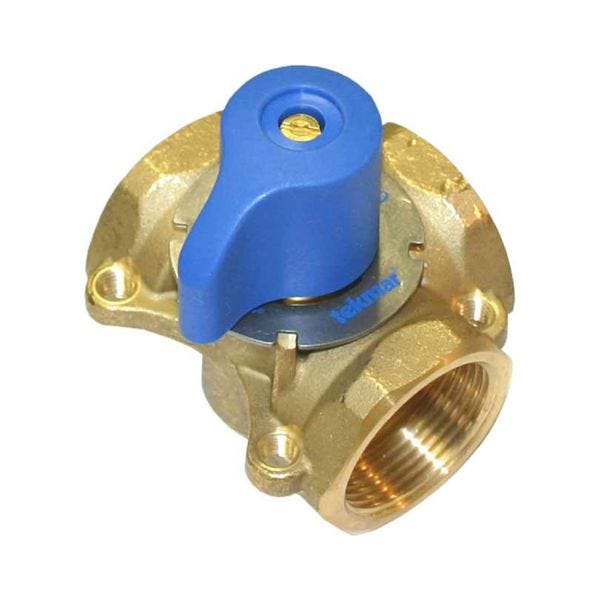

TEKMAR 1-1/4" BRS 3-WAY MIX VL
SKU
343810
Tekmar® Mixing Valve, 3-Way, 1-1/4 in Nominal, FNPT, 146 psi, -20 to 248 deg F, 21 Cv, Media: Water, Handle Actuator, Brass Body, EPDM Peroxide O-Ring Shaft/Main Seal, 3-1/4 in W x 3-5/8 in H, Import
- Brass construction to resist corrosion
- CW 617N - EN 12165 brass valve body and vane
| Pressure Rating | 146 psi |
|---|---|
| Dimensions | 3-1/4 in W x 3-5/8 in H |
| Media | Water |
| End Style | FNPT |
| Body Material | Brass |
| Flow Rate | 21 Cv |
| Type | 3-Way |
| Actuator Type | Handle |
| Temperature Rating | -20 to 248 deg F |
| Nominal Size | 1-1/4 in |
| Domestic/Import | Import |
| Softgoods Material | EPDM Peroxide O-Ring Shaft/Main Seal |
| Brand | Tekmar Controls |
