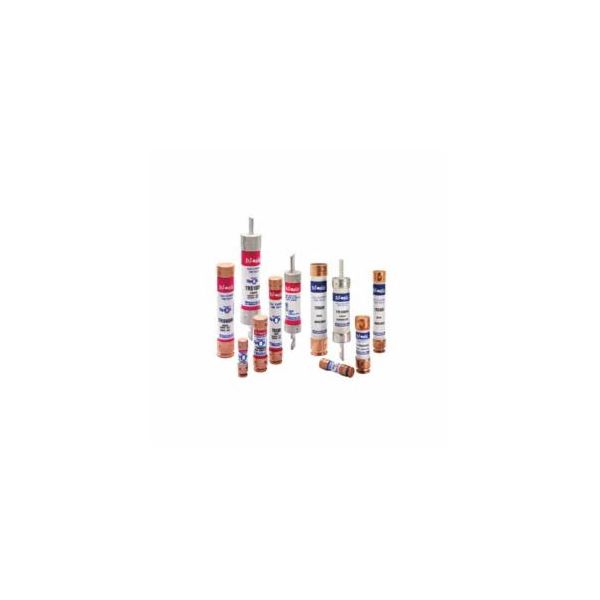

Mersen TRS60R
60A 600V FUSE CLASS RK5
SKU
676915
Mersen Tri-Onic® Time Delay Fuse, Current Limiting Low Voltage, Series: TRS-R, Non-Indicating, Rejection, 60 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK5, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Polyester, 1-1/16 in Dia x 5-1/2 in L Body
- Time delay for motor start-ups and transformer inrush currents without nuisance opening
- Current limiting for low peak let-thru current
- Rejection style design prevents replacement errors
- Easy-to-read label for quick brand recognition and replacement
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching and high current limitation
- North American power fuses
- Copper, tin-plated copper contact
| Class | RK5 |
|---|---|
| Body Size | 1-1/16 in Dia x 5-1/2 in L |
| Element | Dual |
| Material | Polyester |
| Series | TRS-R |
| Voltage Rating | 600 VAC/300 VDC |
| Indicating/Non-Indicating | Non-Indicating |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage |
| Body Type | Cylindrical |
| Amperage Rating | 60 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200/20 kA |
| Brand | Merson Fuses |
| Class | RK-5 |
