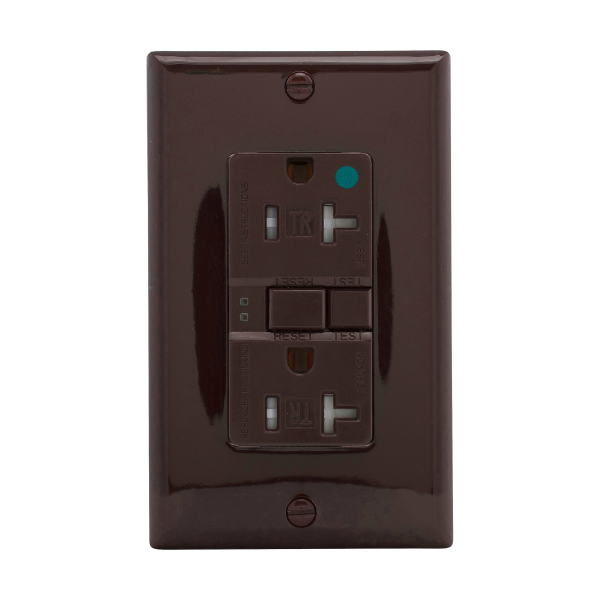

EATON TRSGFH20B

EATON Wiring Devices GFCI Receptacle, Duplex Self-Test Outlet Tamper-Resistant, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Hospital Grade, Back/Side Wire Terminal, Brass/Nylon, Brown, 2.813 in L x 2 in W x 4.625 in H Dimensions

• Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
• Meets and exceeds 10 kA short circuit testing and underwriters laboratories UL 943 safety standards
• Large visual trip indicator light gives quick notification of a tripped or "end of life" condition
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
• Ground termination with back wire clamp provides secure wiring and reduces installation time
• Tamper-resistant shutters resist the insertion of foreign objects
• Line side terminals are backed out and staked for fast installation
• Horizontal test/reset button alignment provides larger unobstructed area
• Test and reset buttons are color matched to provide superior aesthetics
• Tapered backwire openings handle multiple wire sizes and types for application up to 10 AWG stranded/solid wire
• When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
• Line/load miswiring protection, ShockSentry GFCI's will not provide power downstream when wired incorrectly
• Tri-combo head terminal and mounting screws
