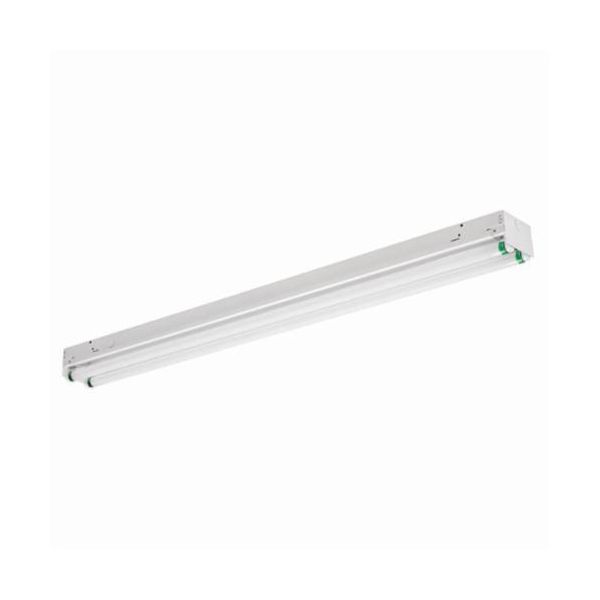

Day-Brite TT232-UNV-1/4-EB
TT232-UNV-1/4-EB CHANNEL
SKU
705767
Day-Brite Strip Light, Linear, Series: TT Series, 120 to 277 VAC, 64 W Fixture, T8 Fluorescent Lamp, 32 W Lamp, 2 Lamps, Electronic Ballast, Surface Mounting, Steel Housing Material, White Enamel Housing Finish, 48 in L x 4-1/8 in W x 3-3/4 in H Dimension
- Multiple knockouts for convenient installation
- Quarter turn latch secures channel cover for easy wireway access
- Green grounding screw installed in channel
- Lampholders may be individually replaced or rewired
- One 4-lamp ballast
- Heavy-duty channel of code gauge die-formed steel
- High-reflectance white baked enamel finish
- Self-contained fluorescent emergency power packs can be incorporated
- Row/surface/suspended mounting
| Ballast Type | Electronic |
|---|---|
| Housing Material | Steel |
| Series | TT Series |
| Lumens | 2900 Lumens |
| Lamp Type | T8 Fluorescent |
| Lamp Wattage | 32 W |
| Dimensions | 48 in L x 4-1/8 in W x 3-3/4 in H |
| Type | Linear |
| Voltage Rating | 120 to 277 VAC |
| Fixture Wattage | 64 W |
| Number of Lamps | 2 |
| Housing Finish | White Enamel |
| Mounting Type | Surface |
| Brand | Day-Bright Lighting |
