EATON TWR270W
DUPLEX 15A TAMPER WEATHER
SKU
817125

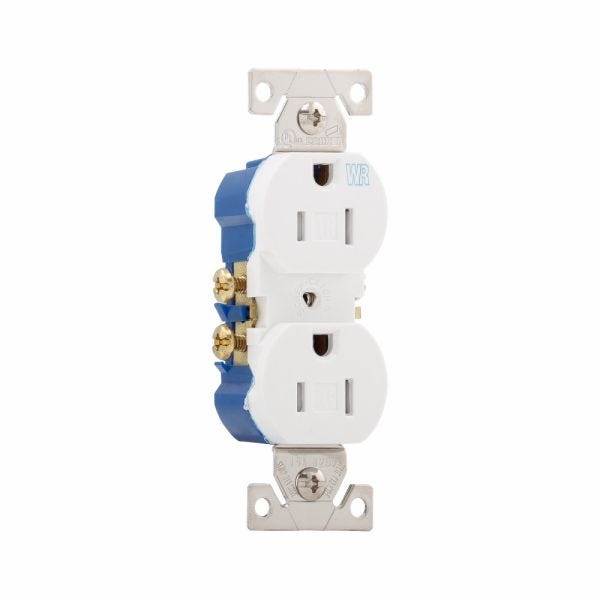

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex, Series: TWR270, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Standard Grade, -20 to 70 deg C, Side Wire/Push-In/Screw Terminal, Thermoplastic, White, 4.19 in H x 1.015 in D Dimensions
- Tamper and weather-resistant receptacles provide both tamper-resistant safety and ensure weather-resistant in wet and damp outdoor locations
- High impact-resistant thermoplastic face and back body eliminates breakage
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- Double wipe ground contacts ensure long term ground retention
- Side wire terminals accept up to 10 AWG solid wire
- 2000 VAC dielectric strength
- PVC insulation
- Flush mounting
- 14 to 10 AWG wire terminal
| Dimensions | 4.19 in H x 1.015 in D |
|---|---|
| Amperage Rating | 15 A |
| Color | White |
| Grade | Residential/Standard |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Thermoplastic |
| Temperature Rating | -20 to 70 deg C |
| Number of Poles | 2 |
| Type | Duplex |
| NEMA Rating | NEMA 5-15R |
| Terminal Type | Side Wire/Push-In/Screw |
| Series | TWR270 |
| Brand | Eaton |
| Color | White |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 15A |
| Number | Duplex |
| Style | Tamper Resistant |
