Uponor A2670003
EP HEAT MNFLD SNGL W/BV&FLM
SKU
539804

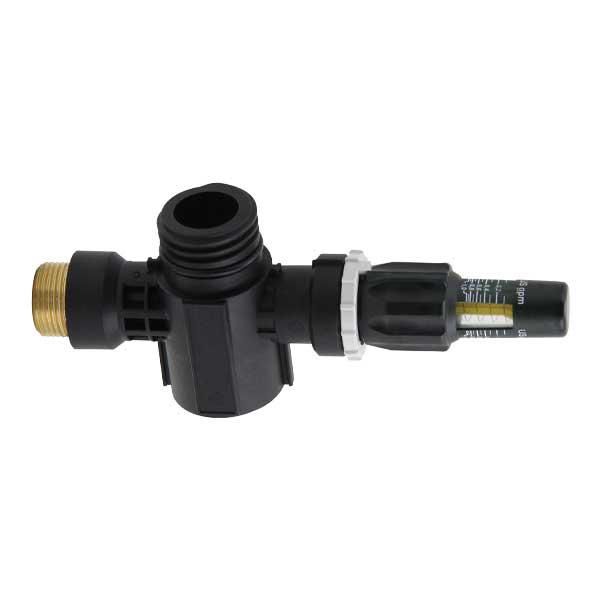

Uponor Heating Manifold, 6 to 144 psi, 60 to 194 deg F, Brass, 7-1/2 in H x 2 in W, Import
- PA66-GF30 manifold
- POM Valve insert, handwheels
- Stainless steel axel
- Stainless steel spring
- EPDM o-ring material
- 0.97 l/s 15.4 gpm Max, water flow per manifold
- The engineered plastic (EP) heating manifold single section with balancing valve and flow meter (A2670003) adds additional loops to an EP heating manifold assembly for use in hydronic radiant heating and cooling systems, Use only propylene glycol in radiant systems with EP heating manifolds; never use ethylene glycol
- Select the proper bracket spacing for the manifold and mount the bracket to the wall, snap the manifold to the bracket
- Adaptable actuators: EP heating manifold, two-wire actuator (A3030522); thermal actuator, four-wire (A3010522) with EP heating manifold actuator adaptor (A2671300)
| Dimensions | 7-1/2 in H x 2 in W |
|---|---|
| Domestic/Import | Import |
| Material | Brass |
| Pressure Rating | 6 to 144 psi |
| Temperature Rating | 60 to 194 deg F |
| Brand | Uponor |
| Accessory Type | Manifolds |
