Uponor LF2501000
10OUT 1"COP MN LF BR 1/2"BV
SKU
460950

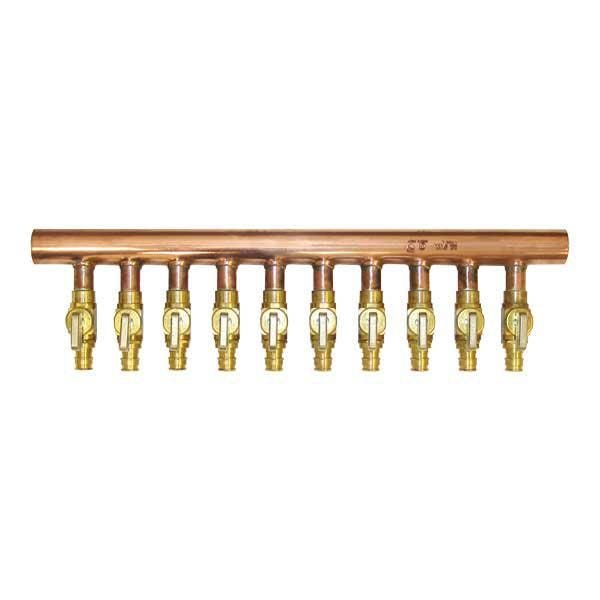

Uponor Valved Manifold, Type L, 1 in Nominal, 16-1/2 in Length, 150 psi Pressure, Brass/Copper, 210 deg F, Import
- 320 deg F at no pressure
- 10.2 gpm at 4 fps
- 12.8 gpm at 5 fps
- Use any product designed to mount 1 in copper pipe as a mounting bracket
- Any bend within 6 inches of the ProPEX connection to the manifold requires the use of a Tube Talon (F7050750) or Bend Support (A5110500 and A5150500)
- Type L copper, C69300 brass material
- ProPEX tool is required, ProPEX rings sold separately, This manifold is not intended for applications using glycol.
- Lead free brass
| Pressure Rating | 150 psi |
|---|---|
| Temperature Rating | 210 deg F |
| Length | 16-1/2 in |
| Type | Type L |
| Domestic/Import | Import |
| Nominal Size | 1 in |
| Material | Brass/Copper |
| Brand | Uponor |
