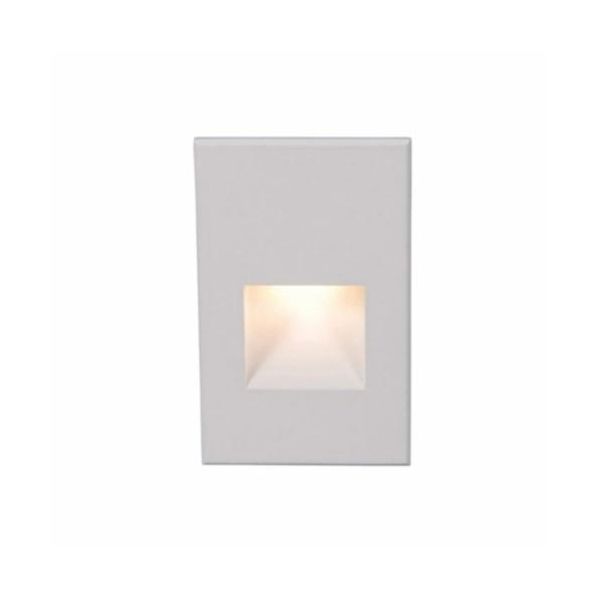

WAC WL-LED200-C-WT
6" WHITE CONNECTOR
SKU
885329
WAC Step Light, Rectangular, 120 VAC, 5 W Fixture, 0.1 A, LED Lamp, 3.9 W Lamp, 40000 hr Average Life, White Light, 3000 K Color Temperature, 83 CRI, 63 Lumens, Aluminum Housing Material, Powder Coated Housing Finish, 3 in L x 5 in H Dimensions
- Electrical component consists of a bi-pin ceramic socket with nickel plating and 30 IN of 18 gauge teflon insulated wires with fiberglass sleeves leading from the socket to strip-prepared ends
- Remote electronic class II transformer required
- Two flat wing springs expand against the cutout hole to hold fixture against the surface
- The socket and insulated wires are installed into the housing with the wires leading out through the side of the housing to the remote power transformer
- 2-3/8 in cutout hole
- Low profile, flush to wall aesthetics with no visible hardware
- Balanced lighting, free of shadows with minimum glare
- Up to 200 fixtures can be connected in paralle
| Amperage Rating | 0.1 A |
|---|---|
| Voltage Rating | 120 VAC |
| Average Life | 40000 hr |
| Light Color | White |
| Fixture Wattage | 5 W |
| Housing Material | Aluminum |
| Color Temperature | 3000 K |
| Lamp Wattage | 3.9 W |
| Type | Rectangular |
| Lamp Type | LED |
| Housing Finish | Powder Coated |
| Dimensions | 3 in L x 5 in H |
| Lumens | 63 Lumens |
| Color Rendering Index (CRI) | 83 |
| Brand | Wach Lighting |
