WATTS 0009589
WATTS 3/4 LFN55BM1-U
SKU
653842

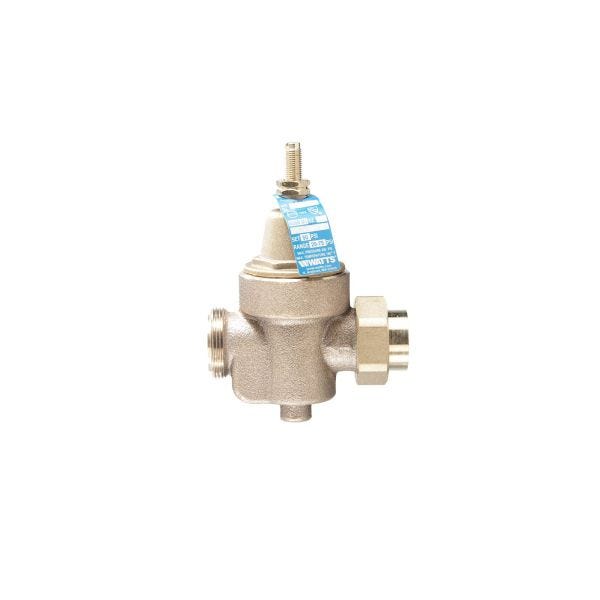

WATTS®, 0009589, Pressure Reducing Valve, Series: LFN55B, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 3-7/16 in Inlet to Outlet Length, 4-9/16 in Top to Inlet Center, Brass Body, Thermoplastic Seat/Reinforced EPDM Diaphragm Softgoods, Domestic
- Thermoplastic seat and bronze cage
- Corrosion resistant adjusting screw and sealed cage for waterworks pit installations
- Integral stainless steel strainer
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
- 25 to 75 psi adjustable reduced pressure range
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Inlet to Outlet Length | 3-7/16 in |
|---|---|
| Nominal Size | 3/4 in |
| Top to Inlet Center | 4-9/16 in |
| Series | LFN55B |
| Body Material | Brass |
| Softgoods Material | Thermoplastic Seat/Reinforced EPDM Diaphragm |
| Temperature Rating | 33 to 180 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| End Style | FNPT |
| Brand | Watts |
