WATTS 0391012
2"909QT BFP W/BALL VLVS LF
SKU
573075

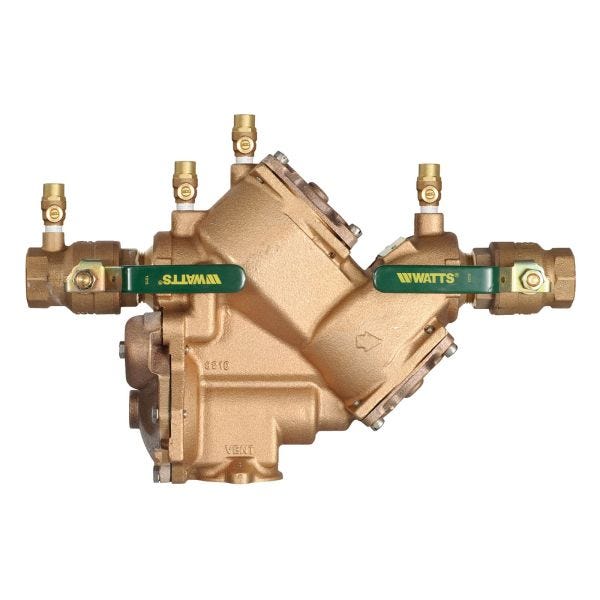

WATTS®, 0391012, Reduced Pressure Zone Assembly, Series: LF909, 2 in Nominal, MNPT End Style, 175 psi Pressure, 33 to 110 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Full Port, Cast Copper Silicon Alloy Body, 5-1/4 in W Dimensions, Domestic
- Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency condition
- Quarter-turn ball valves with lever handles
- Single access cover
- Top mounted test cock
- No special tools are required for servicing
- Modular compact design
- Replaceable seats
- Compact for easy of installation
- Horizontal or vertical (up or down) installation on limited sizes only
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| End Style | MNPT |
|---|---|
| Temperature Rating | 33 to 110 deg F |
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Dimensions | 5-1/4 in W |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 2 in |
| Series | LF909 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
