WATTS 0555177
LF 600 1 SILENT SPRING CHECK
SKU
583741

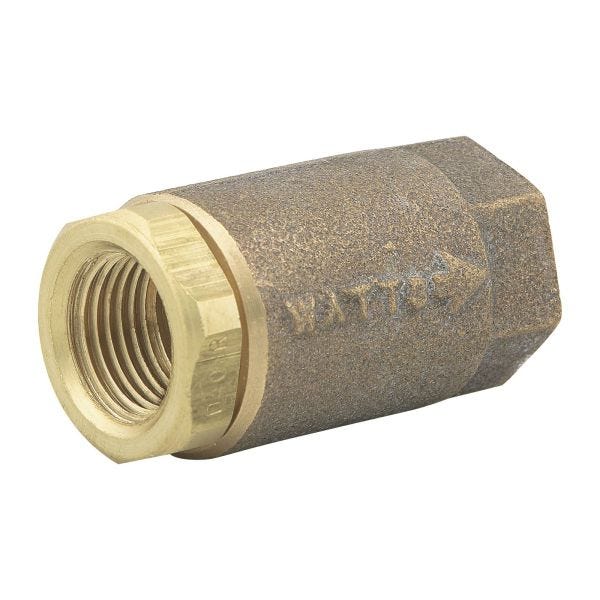

WATTS® Maxi-Flo® Silent Check Valve, 1 in Nominal, FNPT, 400 psi, -20 to 100 deg F, Low Lead Compliance: Yes, 3-1/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, PTFE Seat/Stainless Steel Spring Trim, Nitrile O-Ring, 2 in H, Domestic
- Silent operation
- Conical lead free check for full fluid flow
- Install in horizontal or vertical position with upward flow
- Low pressure drop equivalent to a swing check
- Stainless steel guide rod and spring
- 15 psi WSP pressure rating
| End Style | FNPT |
|---|---|
| Softgoods Material | Nitrile O-Ring |
| Temperature Rating | -20 to 100 deg F |
| Inlet to Outlet Length | 3-1/8 in |
| Domestic/Import | Domestic |
| Dimensions | 2 in H |
| Trim Material | PTFE Seat/Stainless Steel Spring |
| Low Lead Compliance | Yes |
| Pressure Rating | 400 psi |
| Nominal Size | 1 in |
| Series | LF600 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
