WATTS 0651192
1/2 FBV-3C-QC QUICK CON BV
SKU
394813

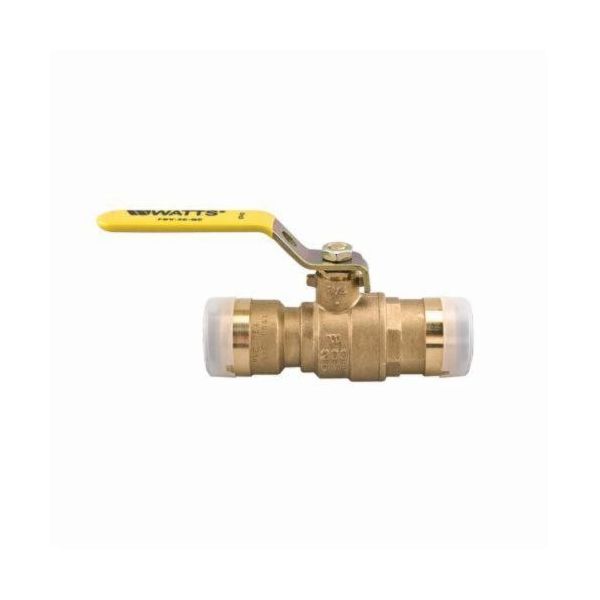

WATTS® Ball Valve, 1/2 in Nominal, Solder, 200 psi, -40 to 180 deg F, Full Port, 1/2 in Orifice, Brass Ball, 3-13/16 in Inlet to Outlet Length, 1.812 in Top to Inlet Center, Brass Body, Brass Stem and Virgin PTFE Seat Trim, Fluorocarbon/PTFE Softgoods
- WATTS® integral quick-connect inlet and outlet connections
- Comes with pipe stiffeners for PEX
- Adjustable stem packing gland provides longer service life
- No thread sealants, solders or glues needed
- Can be rotated under pressure
- Bottom loaded, blow-out proof stem
- Can be removed and reused without the use of tools
- 2-ports/ways
- For use with copper, CPVC, PEX and PB pipe
- Fluorocarbon elastomer O-ring and PTFE stem packing seal/thrust washer
| Softgoods Material | Fluorocarbon/PTFE |
|---|---|
| Port Type | Full |
| End Style | Solder |
| Ball Material | Brass |
| Inlet to Outlet Length | 3-13/16 in |
| Top to Inlet Center | 1.812 in |
| Pressure Rating | 200 psi |
| Orifice Size | 1/2 in |
| Body Material | Brass |
| Nominal Size | 1/2 in |
| Temperature Rating | -40 to 180 deg F |
| Trim Material | Brass Stem and Virgin PTFE Seat |
| Brand | Watts |
