Watts 0700105

SKU
228554

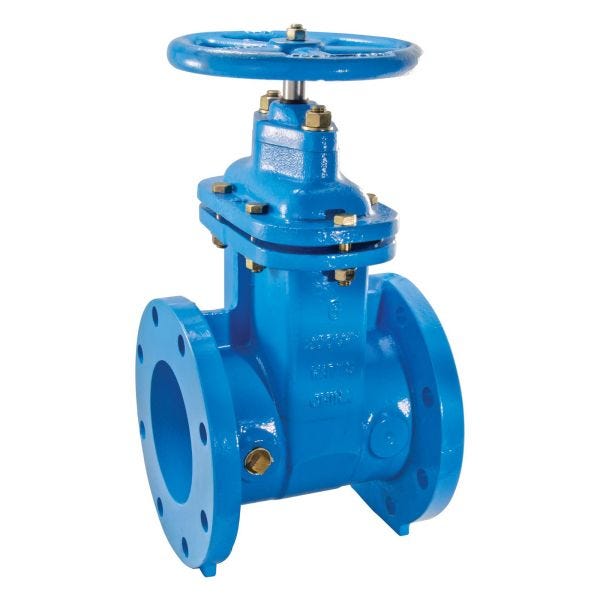

WATTS® Gate Valve, Series: 405, 4 in Nominal, Flanged, 200 psi, 140 deg F, Full Port, Media: Water, Hand Wheel Actuator, 9 in Inlet to Outlet Length, 12-1/2 in Top to Inlet Center, Cast Iron Body, Stainless Steel Trim, Rubber O-Ring, 8-13/16 in Hand Wheel, Import

  • Epoxy coated, internal and external
  • Vulcanized encapsulated resilient wedge
  • In-line serviceable
  • ASTM A126 class B iron (Flanged x Flanged)
  • ASTM A536 65-45-12 ductile iron (Flanged x Groove)
  • The valve is operated by a Handwheel or an operating nut and valve key
  • Boss-tapped and plugged
  • Flanged by flanged valve bodies shall comply with ASTM A126
  • Valve shall be pressure rated to 200 psi (14 bars) CWP with an operating temperature up 140 deg F
  • Valve shall have a non-rising stem
  • Non-rising stem resilient wedge
More Information
Brand Watts
Width (in) 18.0
Weight (lb) 70.0
Pressure Rating UOM psi
Pressure Rating 200
Height (in) 15.0
Length (in) 12.0
Brand Name Watts
Manufacture Name Watts Water Technologies
Softgoods Material Rubber O-Ring
Actuator Type Hand Wheel
Domestic/Import Import
Inlet to Outlet Length (in) 9
Top to Inlet Center (in) 12-1/2
Trim Material Stainless Steel
Body Material Cast Iron
Tax Class Name taxable goods
Item Condition new condition
Product Truck Shipping Flag no
Country of Manufacture United States
Country USA
Series 405
Media Water
Temperature Rating 140
Temperature Rating UOM deg F
End Style Flanged
Port Type Full
Nominal Size (in) 4
