WATTS 0702325
6"LF 408OSY-RW AWWA FLG GATE
SKU
302288

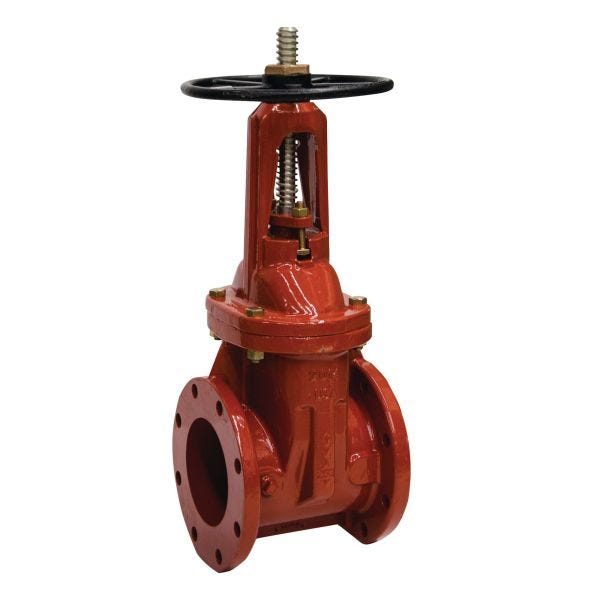

WATTS®, 0702325, Gate Valve, Series: 408, 6 in Nominal, Flanged End Style, 250 psi Pressure, 140 deg F, Full Port, Handwheel Actuator, 10-1/2 in Inlet to Outlet Length, 30-1/8 in Top to Inlet Center, Cast Iron Body, Buna-N Trim, Graphite Impregnated Square Rope Packing Softgoods, 12 in Diameter Hand Wheel, Epoxy Coated, Domestic
- Cast iron hand wheel
- Resilient wedge disc
- Outside stem and yoke
- Easy in-line service
- Replaceable disc
- Boss tapped and plugged
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
| Pressure Rating | 250 psi |
|---|---|
| Inlet to Outlet Length | 10-1/2 in |
| Trim Material | Buna-N |
| Finish | Epoxy Coated |
| Port Type | Full |
| End Style | Flanged |
| Top to Inlet Center | 30-1/8 in |
| Softgoods Material | Graphite Impregnated Square Rope Packing |
| Series | 408 |
| Nominal Size | 6 in |
| Temperature Rating | 140 deg F |
| Hand Wheel Diameter | 12 in |
| Actuator Type | Handwheel |
| Domestic/Import | Domestic |
| Body Material | Cast Iron |
| Brand | Watts |
