WATTS 0750161
WATTS 3/4" THR SHOCK ABSORB "B
SKU
640630

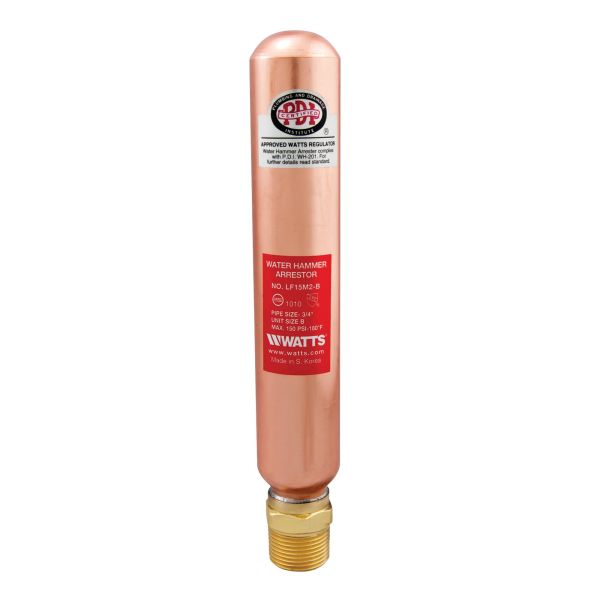

WATTS® Water Hammer Arrester, Series: LF15, 3/4 in Nominal, NPT, 150 psi, 12 to 32 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-9/16 in L, Import
- May be installed in concealed locations without access panels
- NPT solid hex brass adapter or solder end connection for easy installation
- Approved for installation with no access panel required
- May be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle
- Maintenance free piston is the only moving part
- Factory air charged at 60 psi (4.2 bar)and is not rechargeable in the field and permanently sealed
- Polypropylene piston
| Series | LF15 |
|---|---|
| Fixture Unit Capacity | 12 to 32 |
| Pressure Rating | 150 psi |
| End Style | NPT |
| Body Material | Copper |
| Dimensions | 8-9/16 in L |
| Domestic/Import | Import |
| Nominal Size | 3/4 in |
| Softgoods Material | EPDM O-Ring |
| Temperature Rating | 33 to 180 deg F |
| Brand | Watts |
