WATTS V2016-04
4 LFF115 150 DI X Y 263
SKU
610098

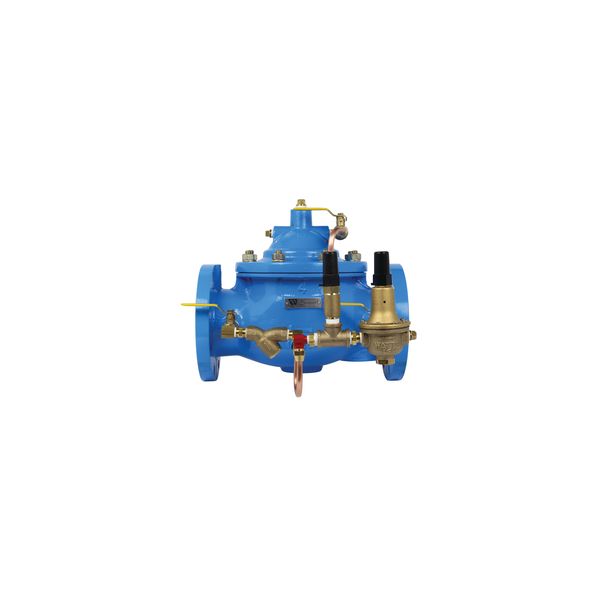

WATTS®, V2016-04, Pressure Reducing Globe Valve, Series: LFF115, 4 in Nominal, Flanged End Style, 250 psi Pressure, 150 lb Pressure Class, 160 deg F, 50 to 800 gpm Flow Rate, 15 in Inlet to Outlet Length, Ductile Iron Body, Buna-N® O-Ring Softgoods, Epoxy Coated, Domestic
- Copper tubing/brass fittings
- The WATTS® ACV Pressure Reducing Control Valve is designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 20 to 175 psi reducing control pressure
| Inlet to Outlet Length | 15 in |
|---|---|
| Nominal Size | 4 in |
| Series | LFF115 |
| Body Material | Ductile Iron |
| Softgoods Material | Buna-N® O-Ring |
| Temperature Rating | 160 deg F |
| Pressure Range | 250 psi |
| Flow Rate | 50 to 800 gpm |
| Finish | Epoxy Coated |
| Domestic/Import | Domestic |
| Pressure Class | 150 lb |
| End Style | Flanged |
| Brand | Watts |
