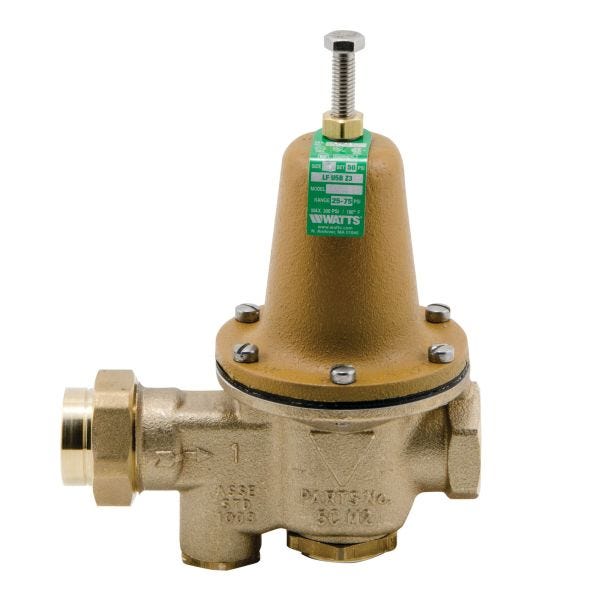

WATTS 0009100
LF U5B-Z3 1/2 PRESS RED VALVE
SKU
337769
WATTS®, 0009100, Pressure Reducing Valve, High Performance, Series: LFU5B, 1/2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, 5-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm Softgoods, Domestic
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Integral stainless steel strainer
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- 25 to 75 psi adjustable reduced pressure range
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Inlet to Outlet Length | 5-5/8 in |
|---|---|
| Nominal Size | 1/2 in |
| Top to Inlet Center | 5-7/8 in |
| Series | LFU5B |
| Body Material | Cast Copper Silicon Alloy |
| Softgoods Material | Reinforced EPDM Diaphragm |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Type | High Performance |
| End Style | FNPT |
| Brand | Watts |
