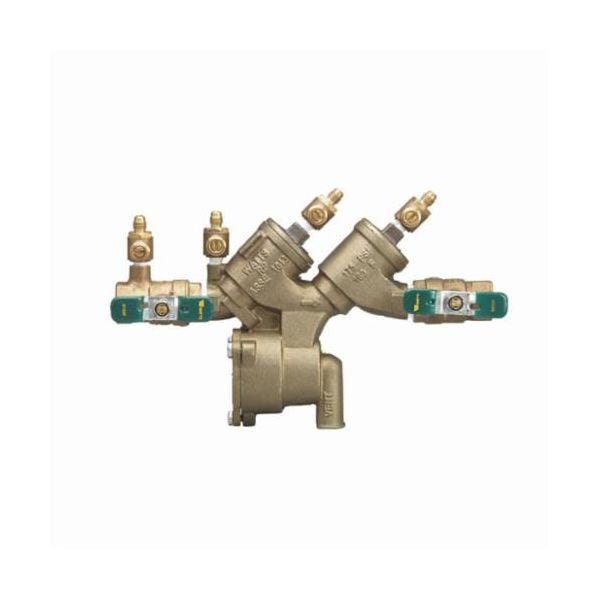

WATTS 0065378

WATTS®, 0065378, Reduced Pressure Zone Assembly, Series: LF919, 3/4 in Nominal, NPT End Style, 175 psi Pressure, 33 to 110 deg F, Quarter-Turn Resilient Seated Ball Valve Ball Valve/Gate Valve, Full Port, Cast Copper Silicon Alloy Body, 12-1/8 in L x 3-5/8 in W x 7-7/16 in H Dimensions, Domestic

• Quarter-turn full port resilient seated ball valve shutoffs with tee handles
• Separate access covers for the check valves and relief valve for easy of maintenance
• Top entry all check internals easily accessible
• All rubber elastomers of chloramine resistant material
• Check valve poppet assemblies are fully guided by innovative plastic seat guide
• Replaceable push-in check valve and relief valve seat eliminates threads from the water way
• EZ twist relief valve cover with Quarter-turn locking joint captures the spring load during repair to facilitate disassembly
• Innovative check valve plastic cover bushing provides trouble free guiding of the check valve poppet
• Bottom mounted relief valve provides reduced installation clearances
• Compact space saving design
• Top mounted test cocks for easy in testing and reduced installation clearances
• The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
• Shut-off valve with tee handle
