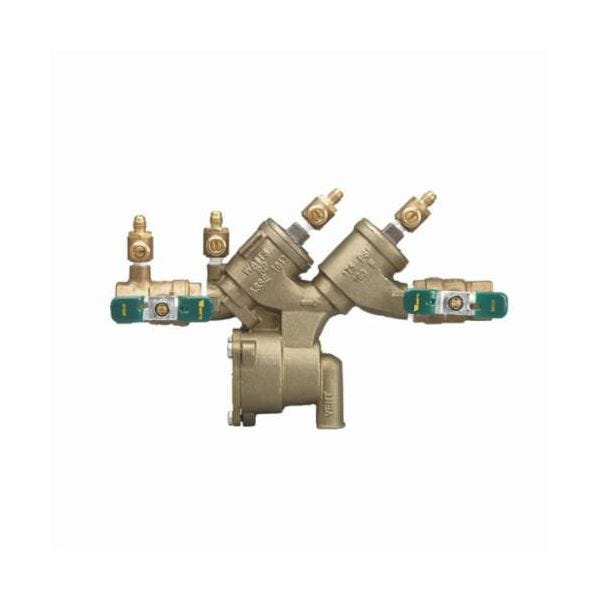

WATTS®, 0065379, Reduced Pressure Zone Assembly, Series: LF919, 1 in Nominal, NPT End Style, 175 psi Pressure, 33 to 110 deg F, Quarter-Turn Resilient Seated Ball Valve Ball Valve/Gate Valve, Full Port, Cast Copper Silicon Alloy Body, 14-1/2 in L x 4 in W x 8 in H Dimensions, Domestic
- Quarter-turn full port resilient seated ball valve shutoffs with tee handles
- Separate access covers for the check valves and relief valve for easy of maintenance
- Top entry all check internals easily accessible
- All rubber elastomers of chloramine resistant material
- Check valve poppet assemblies are fully guided by innovative plastic seat guide
- Replaceable push-in check valve and relief valve seat eliminates threads from the water way
- EZ twist relief valve cover with Quarter-turn locking joint captures the spring load during repair to facilitate disassembly
- Innovative check valve plastic cover bushing provides trouble free guiding of the check valve poppet
- Bottom mounted relief valve provides reduced installation clearances
- Compact space saving design
- Top mounted test cocks for easy in testing and reduced installation clearances
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Shut-off valve with tee handle
| End Style | NPT |
|---|---|
| Temperature Rating | 33 to 110 deg F |
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Quarter-Turn Resilient Seated Ball Valve |
| Dimensions | 14-1/2 in L x 4 in W x 8 in H |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 1 in |
| Series | LF919 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
