WATTS 0125247
LF 3/4 B6801 W/EXTENED HDL
SKU
594260

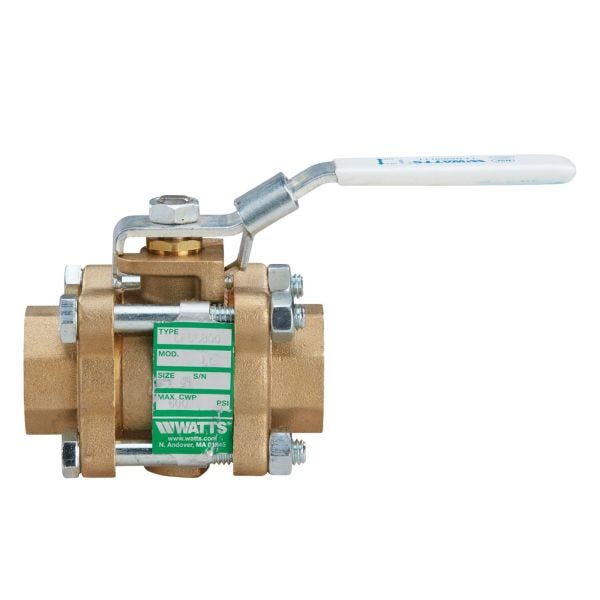

WATTS® Ball Valve, 3-Piece, Series: LFB6801, 3/4 in Nominal, Solder, 600 psi WOG/150 psi WSP, 0 to 450 deg F, 30 gpm, Full Port, Media: Water, 3/4 in Orifice, Extended Handle Actuator, 316 Stainless Steel Ball, 3-1/4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Brass Body, 316 Stainless Steel/Carbon/Glass Reinforced PTFE Durafill® Trim, Glass Reinforced PTFE, Domestic
- Lift-out design
- Blowout proof, pressure retaining stem
- Standard actuator mounting pads
- Vinyl insulator on heavy duty zinc plated carbon steel handles
- Each valve factory tested
- PTFE seals/glass reinforced PTFE stem packing gland
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 316 stainless steel stem shaft/carbon/glass reinforced PTFE Durafill® seat
| Softgoods Material | Glass Reinforced PTFE |
|---|---|
| Flow Rate | 30 gpm |
| Port Type | Full |
| End Style | Solder |
| Media | Water |
| Ball Material | 316 Stainless Steel |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3-1/4 in |
| Top to Inlet Center | 2-1/4 in |
| Type | 3-Piece |
| Pressure Rating | 600 psi WOG/150 psi WSP |
| Orifice Size | 3/4 in |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Temperature Rating | 0 to 450 deg F |
| Series | LFB6801 |
| Actuator Type | Extended Handle |
| Trim Material | 316 Stainless Steel/Carbon/Glass Reinforced PTFE Durafill® |
| Brand | Watts |
| Size | 3/4" |
