WATTS 0212032
35GAL VOLUME DETA80 ASME POTBL
SKU
236009

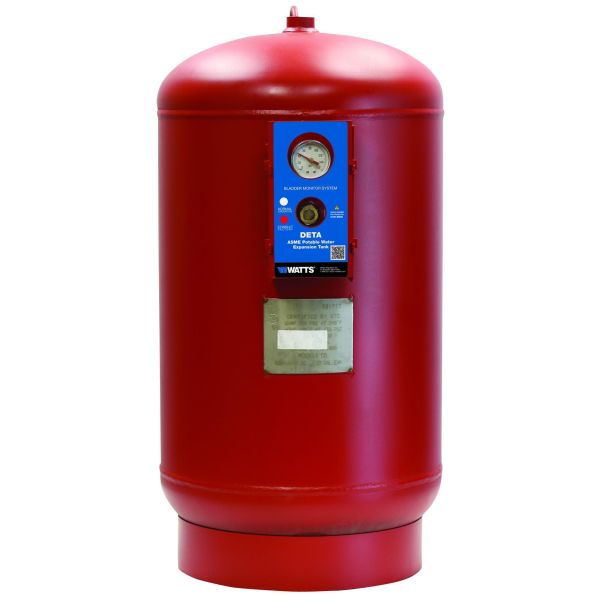

WATTS® Expansion Tank, Pressurized, Series: DETA, 35 gal Tan, 23.5 gal Acceptance Volume, 150 psi, ASME Yes/No: Yes, 16 in Dia, 45 in Height, Carbon Steel, 40 psi Pre-Pressure Rating, 240 deg F Maximum Temperature, NPT, 1 in, Domestic
- Heavy duty fixed butyl rubber bladder with bladder monitor system
- In-line and free standing models
- Can be used with most standard hot water heaters and storage tanks
- Field adjustable
- Lead free
- The pre-pressurized steel tank features a durable expansion membrane that prevents contact of the water with the air in the tank
- This rugged diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system
- The water is contained in a butyl bladder
- They are designed to accept the expanded volume of hot water keeping the system pressure below the relief valve setting
| Connection Type | NPT |
|---|---|
| Pre-Pressure Rating | 40 psi |
| ASME Yes/No | Yes |
| Acceptance Volume | 23.5 gal |
| Height | 45 in |
| Material | Carbon Steel |
| Maximum Temperature | 240 deg F |
| Diameter | 16 in |
| Connection Size | 1 in |
| Tank Volume | 35 gal |
| Domestic/Import | Domestic |
| Type | Pressurized |
| Pressure Rating | 150 psi |
| Series | DETA |
| Brand | Watts |
