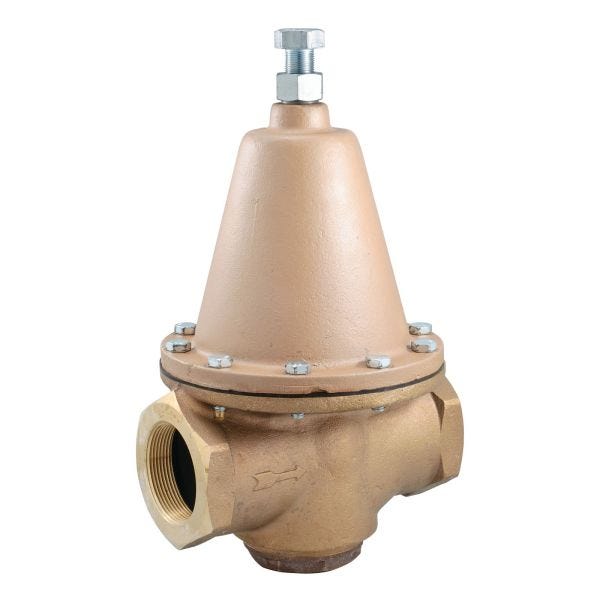

WATTS 0298615
3"LF N223 BRZ THD WATER PRV VL
SKU
530928
WATTS® Pressure Reducing Valve, High Capacity, Series: LF223, 3 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 10-1/2 in Inlet to Outlet Length, 12-3/4 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Screen, Seat, Domestic
- NPT threaded female inlet by NPT threaded female outlet connections
- Lead free brass body construction
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
- Sensitive spring and large diaphragm for accurate pressure control
- High temperature resisting diaphragm for hot or cold water
- Enlarged diaphragm, spring cage and seat orifice for super capacity performance
- Serviceable in line
- Series LFN223BS furnished with separate Lead Free strainer
- Standard bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- 25 to 75 psi adjustable reduced pressure range
- Replaceable stainless steel alloy seat
- Reinforced Buna-N diaphragm
| Inlet to Outlet Length | 10-1/2 in |
|---|---|
| Nominal Size | 3 in |
| Top to Inlet Center | 12-3/4 in |
| Series | LF223 |
| Body Material | Cast Copper Silicon Alloy |
| Softgoods Material | Stainless Steel Screen, Seat |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Type | High Capacity |
| End Style | FNPT |
| Brand | Watts |
