WATTS 0702340
12" 408-OSY-RW FLGD GATE VLV
SKU
636080

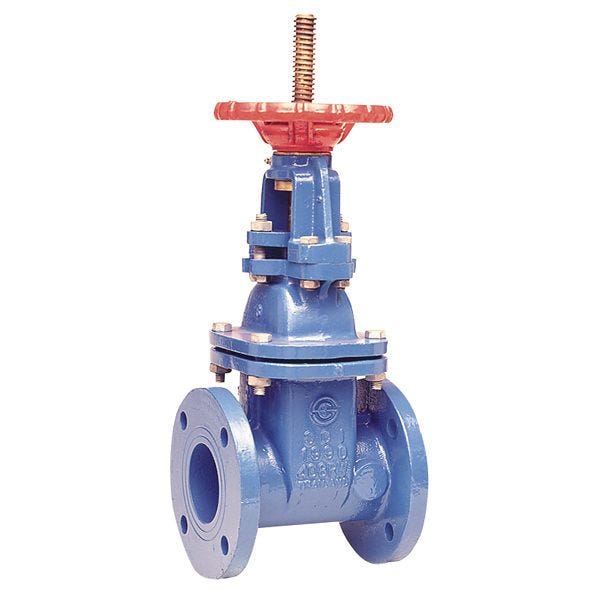

WATTS® Flanged Gate Valve, 12 in Nominal, Flanged End Style, 250 psi CWP Pressure, 140 deg F, Full Port, Media: Water, Handwheel Actuator, 14 in Inlet to Outlet Length, 53-1/8 in Top to Inlet Center, Cast Iron Body, Bronze Stem Assembly/Cast Iron SBR Coated Wedge Disc Trim, Nylatron Lower Thrust Washer/Buna-N O-Ring (Stem) Softgoods, Epoxy Coated, 18 in W Dimensions, Domestic
- Flanged connections
- Cast iron hand wheel
- Full port flow, low head loss
- Fusion bonded coating, internal and external
- Encapsulated resilient wedge
- Easy in-line service
- Replaceable disc
- Boss tapped and plugged
| Softgoods Material | Nylatron Lower Thrust Washer/Buna-N O-Ring (Stem) |
|---|---|
| Dimensions | 18 in W |
| Port Type | Full |
| End Style | Flanged |
| Media | Water |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 14 in |
| Top to Inlet Center | 53-1/8 in |
| Pressure Rating | 250 psi CWP |
| Body Material | Cast Iron |
| Nominal Size | 12 in |
| Temperature Rating | 140 deg F |
| Actuator Type | Handwheel |
| Trim Material | Bronze Stem Assembly/Cast Iron SBR Coated Wedge Disc |
| Finish | Epoxy Coated |
| Brand | Watts |
| Type | Gate Valve |
