Watts Water Technologies 0792076

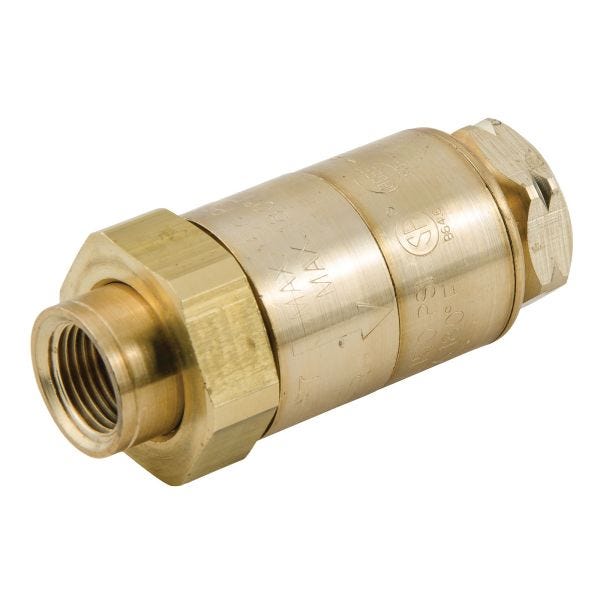

3/8 WATTS LF 7 DUAL CHECK VLV
SKU
566354
WATTS® Dual Check Valve, 3/8 in Nominal, FNPT, 150 psi, 33 to 180 deg F, Low Lead Compliance: Yes, Media: Water, 2-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, Silicone Disc/Stainless Steel Spring Trim, Buna-N® Seal, 1-1/4 in H, Import
- No special tools are required for servicing
- Short lay length
- Can be installed in the vertical or horizontal position
- Can be installed in many piping configurations and with a wide range of meter horns, copper setters and meter boxes
| End Style | FNPT |
|---|---|
| Softgoods Material | Buna-N® Seal |
| Temperature Rating | 33 to 180 deg F |
| Inlet to Outlet Length | 2-7/8 in |
| Domestic/Import | Import |
| Media | Water |
| Dimensions | 1-1/4 in H |
| Trim Material | Silicone Disc/Stainless Steel Spring |
| Low Lead Compliance | Yes |
| Pressure Rating | 150 psi |
| Nominal Size | 3/8 in |
| Series | LF7 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
