WATTS 0792189
* LF 909 RPZ LESS VALVES
SKU
794736

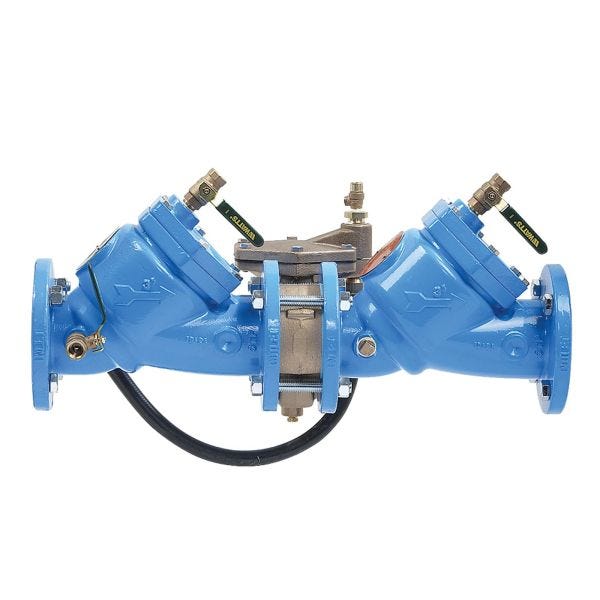

WATTS®, 0792189, Reduced Pressure Zone Assembly, Series: LF909, 3 in Nominal, 175 psi Pressure, 33 to 110 deg F, Cast Copper Silicon Alloy Body, Epoxy Coated, 42-1/4 in L Dimensions, Domestic
- Utilize advanced ArmorTek coating technology to resist corrosion of internal
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Replaceable seats
- Stainless steel internal parts
- Captured spring assemblies for safety
- Fused epoxy coated and lined checks
- Industrial strength sensing hose
- Field reversible relief valve
- Air-in/water-out relief valve design provides maximum capacity during emergency conditions
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Without shut-off valve
| Dimensions | 42-1/4 in L |
|---|---|
| Domestic/Import | Domestic |
| Pressure Rating | 175 psi |
| Body Material | Cast Copper Silicon Alloy |
| Nominal Size | 3 in |
| Temperature Rating | 33 to 110 deg F |
| Series | LF909 |
| Finish | Epoxy Coated |
| Brand | Watts |
