WATTS 0825205
6"77F-DI-125 FLG CI Y-STRAINER
SKU
310516

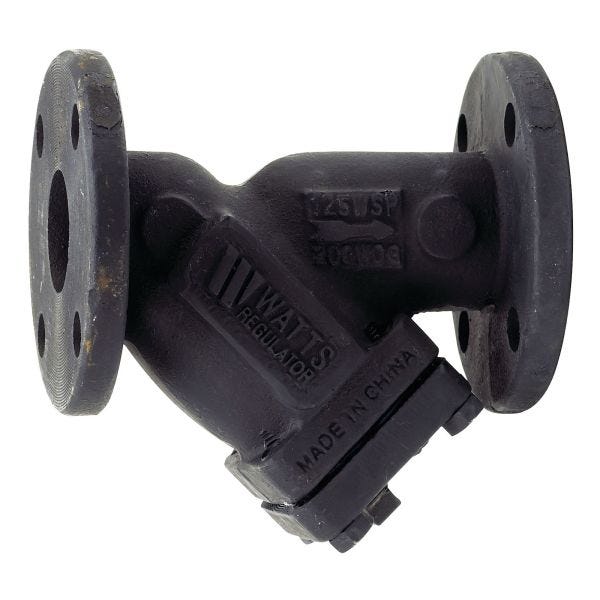

WATTS® Wye Strainer, Series: 77F-DI-125, 6 in Nominal, 18-1/2 in Overall Length, Flanged, 2 in NPT Blow-Off, Graphite, Cast Iron Body, Import
- Wye pattern
- 304 stainless steel perforated screens
- Flanged
- Flanges conform to american national standards Institute, class 125 (ANSI B16.1) and WW-S-2739 type 2
- Cast iron flanged retainer cap with gasket tapped for closure plug
- Drain/blow-off connection furnished with closure plug
- 125 psi WSP, 200 psi WOG
- Graphite gasket
| Softgoods Material | Graphite |
|---|---|
| Connection Type | Flanged |
| Blow-Off Size | 2 in NPT |
| Overall Length | 18-1/2 in |
| Domestic/Import | Import |
| Body Material | Cast Iron |
| Nominal Size | 6 in |
| Series | 77F-DI-125 |
| Brand | Watts |
