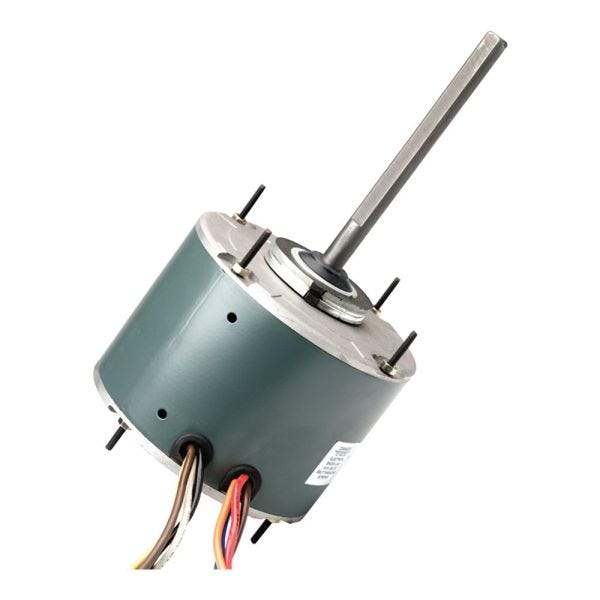

Wagner by Diversitech WG840728
1/4 HP 208-230V COND FAN MTR
SKU
310881
Wagner by Diversitech Condenser Fan Motor, Condenser Fan Motors Application, 1/4 hp, 208 to 230 VAC, 2.2 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, Belly Band/Shaft Up/Down Mounting, 60 deg C, Insulation Class: Class B, 5.59 in Dia x 10.584 in L Dimensions
- Extended bolts - extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
- Supportive foam cradle - A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft and mounting bolts during shipment
- Large label - the informative product label contains the motor model number in large, easily identifiable type
- Capacitor size on box - the appropriate size of 370 VAC run capacitor is noted on every motor carton
- Ball bearings - fractional horsepower motors include ball bearings which allow greater heat endurance, improve performance, increase reliability and enhance motor life
- Large wiring diagram - Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet
- Carton handle - the motor carton has been designed with an innovative handle to make the motors much easier to carry
- For customer convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton
- Insulated disconnects - run capacitor connections are insulated for increased safety
- The flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided
- Easy-to-read packaging - the vibrant design of the fractional horsepower motor's packaging makes reading easy and direct
- The distributor can identify the stock of motors on the shelf with ease, the application, voltage and horsepower of the motor are clearly visible
- Extended wires - Wagner motor wires are 30 in long
- The added length makes it easier for the contractor to install the new motor
- Reversing plug - the electrical reversing plug simplifies rotation direction changes
| Speed | 1075 rpm |
|---|---|
| Horsepower | 1/4 hp |
| Voltage Rating | 208 to 230 VAC |
| Enclosure Type | Totally Enclosed Air Over |
| Insulation Class | Class B |
| Rotation | Reversible |
| Temperature Rating | 60 deg C |
| Dimensions | 5.59 in Dia x 10.584 in L |
| Bearing Type | Ball |
| Frame | 48 |
| Service Factor | 1 |
| Mounting Type | Belly Band/Shaft Up/Down |
| Number of Speeds | 1 |
| Amperage Rating | 2.2 A Full Load |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Application Type | Condenser Fan Motors |
| Shaft Size | 1/2 in Dia x 5 in L |
| Brand | Diversitech |
