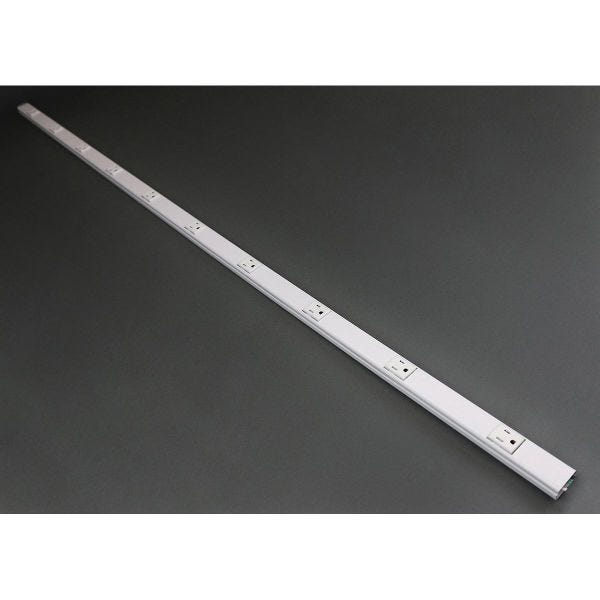

Wiremold WH20GB506TR
5' TAMPER RESIST PLUGMOLD WHT
SKU
741734
Wiremold® Plugmold® Multi-Outlet System, 1-Circuit 3-Wire, Series: 2000, 5 ft Length, 1-9/32 in Width, 3/4 in Height, 125 VAC, 1 Channels, 12 AWG THHN Cable, 10 Outlets, 6 in Outlet Center Distance, Outlet Configuration: (9) Single Tamper Resistant Receptacle, 15 A Receptacle Outlet, Screw-On Mounting, Steel, White, Enamel
- Meets new tamper-resistant requirements for 2008 NEC section 406.11
- Provides additional protection from burns and other injuries, mandated for residential applications
- Built-in shutter system prevents the insertion of unwanted objects such as hairpins, keys and nails, providing additional protection for occupants including small children
- Available in 3 and 5 ft length with 6 in receptacle spacing provides additional power access in smaller, more confined areas
- Provides additional power access in smaller, more confined areas
- Multiple lengths present more mounting options
- 15 A proprietary simplex decorator receptacle, functional and aesthetically pleasing, matches any decor
- Steel or aluminum construction, superior strength for residential applications providing years of protection and convenience
- Designed for surface mounting, easier and more convenient installation eliminates the need to break through walls
- Multiple power feed options provide clean, attractive installations with concealed power sources
- Steel raceway, compact low profile design
- Steel raceway, compact low profile design, full range of fittings, one and two gang device boxes
| Outlet Rating | 15 A Receptacle |
|---|---|
| Cable Type | 12 AWG THHN |
| Color | White |
| Series | 2000 |
| Outlet Configuration | (9) Single Tamper Resistant Receptacle |
| Finish | Enamel |
| Material | Steel |
| Number of Outlets | 10 |
| Outlet Center Distance | 6 in |
| Width | 1-9/32 in |
| Type | 1-Circuit 3-Wire |
| Length | 5 ft |
| Voltage Rating | 125 VAC |
| Number of Channels | 1 |
| Height | 3/4 in |
| Mounting Type | Screw-On |
| Brand | Legrand |
