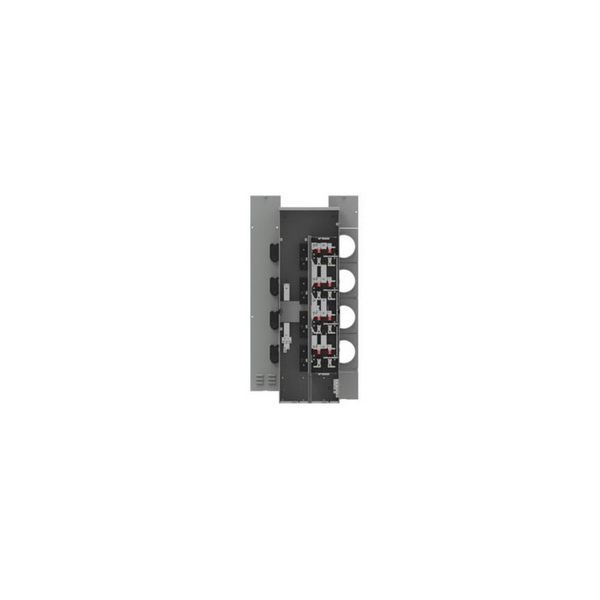

Siemens WMM41225RB
4G 225A METER STACK
SKU
796441
Siemens Power Mod™ Meter Stack, 6-Cutout 3-Wire Insulated, Series: WMM, Underground Feed, 120/240 VAC, 1200 A Bus, 225 A Socket, 4 Meter Sockets, 1, Ringless Socket Cover Style, 4 Socket Jaws, QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH Breaker, NEMA 3R Enclosure, Rail Mounting, 59 in H x 19 in W x 9 in D
- Exclusive knockout plate offers flexibility when pulling wires to the stack
- New breaker supports keep breakers level and straight
- Moveable neutrals and grounds to save wire
- QuickSystem™ features all designed with the contractor in mind
- 1-phase 3-wire solid neutral incoming and outgoing
- Field installed 5th jaw ECMF5, 5th jaw can be isolated if needed
| Feed Type | Underground |
|---|---|
| Mounting Type | Rail |
| Socket Jaws | 4 |
| Type | 6-Cutout 3-Wire Insulated |
| Phase | 1 |
| Bus Amps | 1200 A |
| Enclosure Type | NEMA 3R |
| Series | WMM |
| Dimensions | 59 in H x 19 in W x 9 in D |
| Socket Amps | 225 A |
| Socket Cover Style | Ringless |
| Voltage Rating | 120/240 VAC |
| Number of Meter Sockets | 4 |
| Breaker Type | QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH |
| Brand | Siemens Ind |
