Siemens WP2211RJB
LOW VOLTAGE METER 200A 1PH
SKU
763744

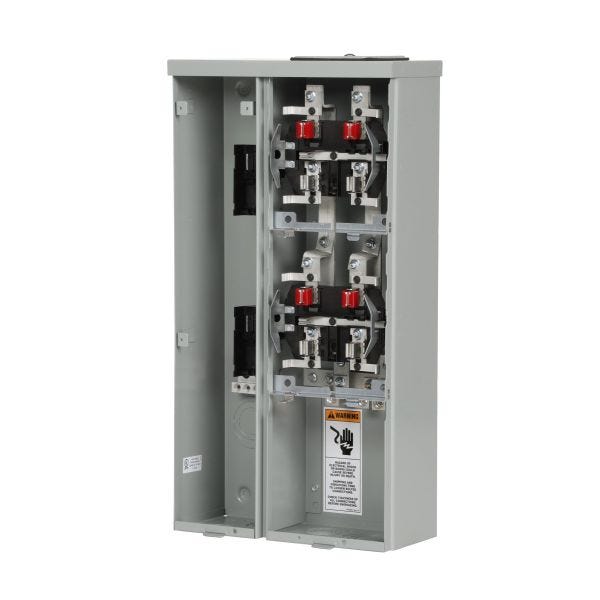

Siemens UNI-PAK Meter Socket, 2-Position, Series: WP Series, 120/240 VAC, 200 A, 1 ph, Bottom/Top Feed, 5 Jaws, 6 AWG to 300 kcmil Wire, Ringless Cover, Insulated Insulation, Surface Mounting, 26.2 in H x 13.79 in W x 6.02 in D Dimensions
- Individual split covers with barrel lock compatibility
- Horn bypass factory installed
- Completely self-contained meter centers
- Compact, pre-bussed, easy to handle, hang and wire
- Barriered, sealable compartment for unmetered current carrying parts
- Aluminum/copper lay-in lugs, except two position 125 A units
- Bottom and rear branch wiring exits (neutral and ground at bottom only)
- ANSI no 61 light gray electro-deposited paint on zinc coated steel
- 5th jaw kit included
- 3-wire connection
- 125 A sockets feed plug in tenant breakers through 125 A
- 65 kA interrupt rating
- QP, QPH, HQP, MP-T, MP-HT, MP-MT breaker provision
| Feed Type | Bottom/Top |
|---|---|
| Mounting Type | Surface |
| Insulation | Insulated |
| Type | 2-Position |
| Phase | 1 |
| Series | WP Series |
| Dimensions | 26.2 in H x 13.79 in W x 6.02 in D |
| Wire Size | 6 AWG to 300 kcmil |
| Voltage Rating | 120/240 VAC |
| Number of Jaws | 5 |
| Amperage Rating | 200 A |
| Cover Type | Ringless |
| Brand | Siemens Ind |
