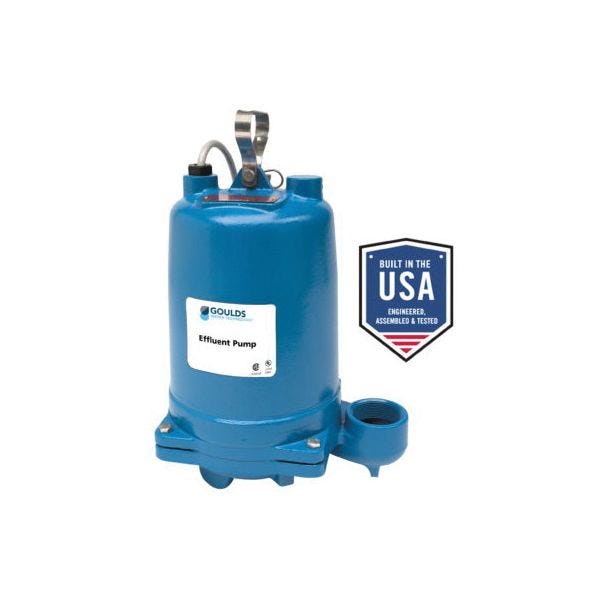

Goulds WE0511H
PUMP EFFLUENT 1/2HP 115V
SKU
659076
Goulds Submersible Effluent Pump, Series: WE Series, 140 gpm Maximum, Automatic/Non Automatic: Automatic, 2 in NPT Outlet, Up to 128 ft TDH Maximum Head, 1 hp, 115 VAC, 14.5 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTOW/STOW 14/3 AWG Cord, Cast Iron Non-Clogging Semi-Open Impeller, 104 deg F Continuous/140 deg F Intermittent, Heavy Duty Ball Bearing, Cast Iron, 11-1/2 in L x 8-1/2 in W x 16 in H Dimensions, Domestic
- Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection
- Balanced for smooth operation
- Casing - cast iron volute type for maximum efficiency
- Mechanical seal - silicon carbide versus silicon carbide seal faces
- Stainless steel metal parts, Buna-N elastomers
- Threaded design
- Shaft - corrosion resistant, stainless steel
- Locknut on all models to guard against component damage on accidental reverse rotation
- Designed for continuous operation when fully submerged
- Capable of running dry without damage to components
- 3/4 in maximum solid handling
- 300 series stainless steel fasteners
- SJTOW or STOW severe duty oil and water resistant power cords
- Class B insulation
- 3.56 in Dia impeller
- Model number: 3885
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Automatic |
| Maximum Flow Rate | 140 gpm |
| Cord Type | SJTOW/STOW 14/3 AWG |
| Temperature Rating | 104 deg F Continuous/140 deg F Intermittent |
| Domestic/Import | Domestic |
| Amperage Rating | 14.5 A |
| Outlet Size | 2 in NPT |
| Phase | 1 ph |
| Bearing Type | Heavy Duty Ball |
| Maximum Head | Up to 128 ft TDH |
| Dimensions | 11-1/2 in L x 8-1/2 in W x 16 in H |
| Impeller Type | Cast Iron Non-Clogging Semi-Open |
| Series | WE Series |
| Material | Cast Iron |
| Horsepower | 1 hp |
| Brand | Goulds |
