Goulds WS1034BF
PUMP SEWAGE 1HP 3PH 460V 2"
SKU
655697

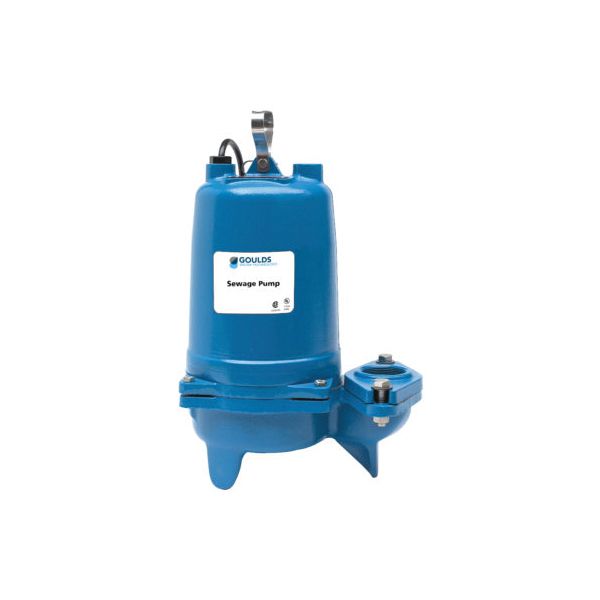

Goulds Submersible Sewage Pump, Series: WS BF, 20 gpm Flow Rate, 2 in NPT Companion Flange Outlet, 35 ft TDH Maximum Head, 1 hp, 460 VAC, 2.9 A, 60 Hz Frequency, 3 ph ph, 1750 rpm Motor, STOW 20 ft Cord, Cast Iron Non-Clogging Semi-Open Impeller, 104 deg F Continuous/140 deg F Intermittent, Ball Bearing, Cast Iron, 12-1/2 in W x 8-1/4 in D x 19 in H Dimensions, Domestic
- Cast iron flanged volute type casing for maximum efficiency
- Corrosion-resistant 300 series stainless steel shaft
- Designed for continuous operation when fully submerged
- 5-3/4 in Dia impeller
- 2 in maximum solid handling
- Model number: 3887BF
| Motor Speed | 1750 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Flow Rate | 20 gpm |
| Cord Type | STOW 20 ft |
| Temperature Rating | 104 deg F Continuous/140 deg F Intermittent |
| Domestic/Import | Domestic |
| Amperage Rating | 2.9 A |
| Outlet Size | 2 in NPT Companion Flange |
| Phase | 3 ph |
| Bearing Type | Ball |
| Maximum Head | 35 ft TDH |
| Dimensions | 12-1/2 in W x 8-1/4 in D x 19 in H |
| Impeller Type | Cast Iron Non-Clogging Semi-Open |
| Series | WS BF |
| Material | Cast Iron |
| Horsepower | 1 hp |
| Brand | Goulds |
