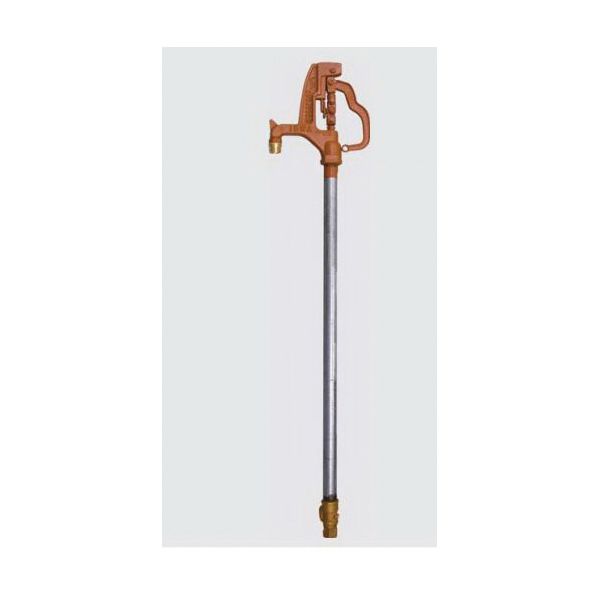

Woodford Y34-4
4 FT.BURY YARD HYDRANT
SKU
10
Woodford® IOWA® Yard Hydrant, Freezeless, Series: Model Y34, 3/4 in Nominal, FNPT, 4 ft Bury Depth, 3/8 in Rod Dia, 125 psi, Steel Rod, 120 deg F, Domestic
- Adjustable link provides easy and positive adjustment of the lever lock tension
- Rod guide eliminates side pull on rod, reduces wear on packing, packing nut and stem
- Flow finder and lock: Simple cam that can be set to automatically obtain the same flow each time or lock against accidental opening
- Long life packing: Graphite packing for lubricity and long life
- 1-piece variable flow plunger with large cushion type seal for longer life is not easily damaged and assures shut-off even when foreign particles are present
- Automatic drain feature: Plunger opens drain to prevent freezing closes at any flow to prevent wasting water
| Pressure Rating | 125 psi |
|---|---|
| Type | Freezeless |
| Domestic/Import | Domestic |
| Rod Material | Steel |
| End Style | FNPT |
| Rod Diameter | 3/8 in |
| Series | Model Y34 |
| Temperature Rating | 120 deg F |
| Nominal Size | 3/4 in |
| Bury Depth | 4 ft |
| Brand | Woodford |
