Hubbell YA1CL4BOX
1STR CU 1-HOLE SHORT 3/8
SKU
805973

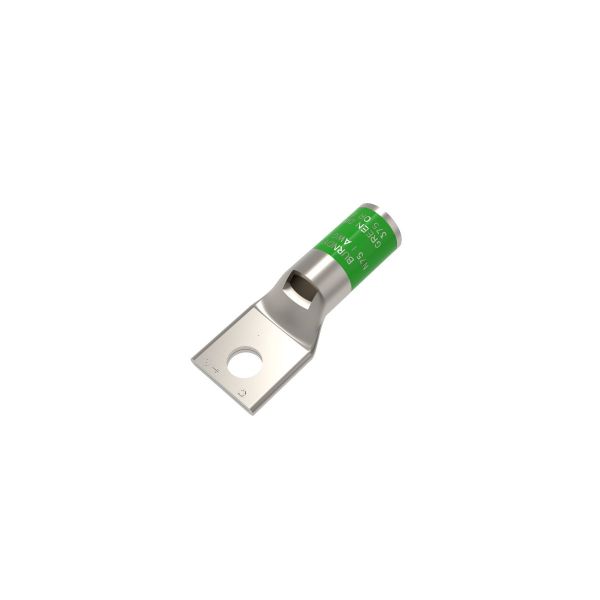

BURNDY® HYLUG™ Compression Lug, 1-Hole, Series: YA-L, Stranded Copper Conductor, 1 AWG Conductor, Die Code: 11, 600 VAC to 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.68 in W x 0.1 in THK Tongue, 2.06 in Overall Length, Chamfered/Short/Standard Barrel, 0.88 in L Barrel, 15/16 in L Wire Strip, Tin Plated, 90 deg C, Copper, Green
- For mechanical - (1) W1CVT, (1) W1CRT-1, (1) X1CRT-1, (1) BCT500HS, Y500CTHS hydraulic - (1) W1CVT, (1) W1CRT-1, (1) X1CRT-1, (4) W29VT, Y35, Y39, Y750, Y46, PAT750 hydraulic - (1) U1CRT-1, (1) U4CABT, dieless - (2) Y1MRTC, (1) MY29-3, (1) MY29-11, (1) MRC840, (1, Y644HS, (1) Y81KFT, (1) Y81KFTMBH, (1) PAT81KFT-18V installation tool
- 1 AWG stranded conductor
| Temperature Rating | 90 deg C |
|---|---|
| Color | Green |
| Specifications | 15/16 in L Wire Strip, Tin Plated |
| Barrel Size | 0.88 in L |
| Conductor Size | 1 AWG |
| Stud Size | 3/8 in |
| Voltage Rating | 600 VAC to 35 kV |
| Barrel Type | Chamfered/Short/Standard |
| Conductor Type | Stranded Copper |
| Die Code | 11 |
| Overall Length | 2.06 in |
| Series | YA-L |
| Tongue Size | 0.68 in W x 0.1 in THK |
| Tongue Type | Standard/Straight |
| Material | Copper |
| Type | 1-Hole |
| Brand | Burndy LLC |
