Zoeller Company 10-0092
DUPLEX CNTRL PANEL
SKU
337274

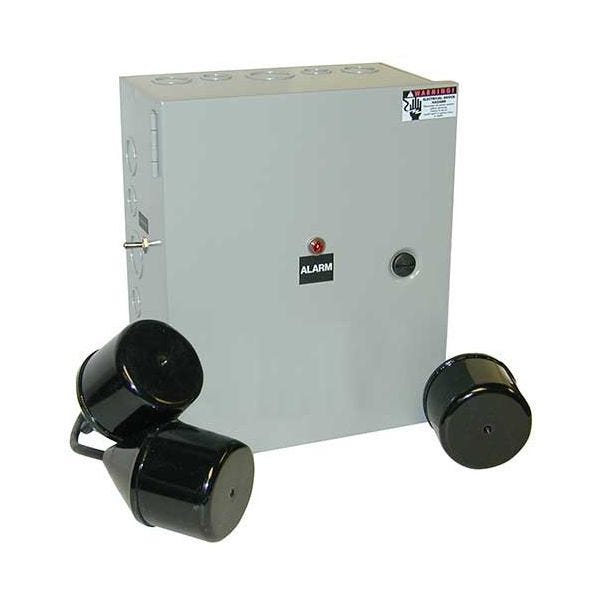

Zoeller® Electrical Control Panel, Duplex Alternator, 115/200/230 VAC, 1 ph, 0 to 20 A, 12 in H x 10 in W x 6 in D, For Use With: Duplex Installation Pump
- Hand off auto toggle switch for each pump
- Green pump run pilot light for each pump
- Alarm test and silence switches
- Red pilot light (NEMA 1 only) and audible alarm with 83 to 85 dB for a high water condition
- Red alarm beacon included with NEMA 4X enclosure
- Auxiliary dry contact
- High water alarm
- Single phase circuit breaker for each pump
- Branch circuit protection provided by installing electrician
- Magnetic starter for each pump
- Alternating mechanism
- Numbered terminal strip for connecting pumps and variable level float switches
- Integral auxiliary terminal board connections (dry contact) for remote alarm devices
- 3 or 4 variable level float switch control operation
- Three 20 ft (6 m) float switches included with single phase panels
- The use of off the shelf components provide for relatively easy field maintenance and repair
- Float switches not included with three phase panels
| Suitable For Use With | Duplex Installation Pump |
|---|---|
| Amperage Rating | 0 to 20 A |
| Phase | 1 ph |
| Type | Duplex Alternator |
| Voltage Rating | 115/200/230 VAC |
| Specifications | 12 in H x 10 in W x 6 in D |
| Brand | Zoeller |
