Zoeller Company 912-0113
PREASSEMBLED SEWAGE PUMP 1/2HP
SKU
873747

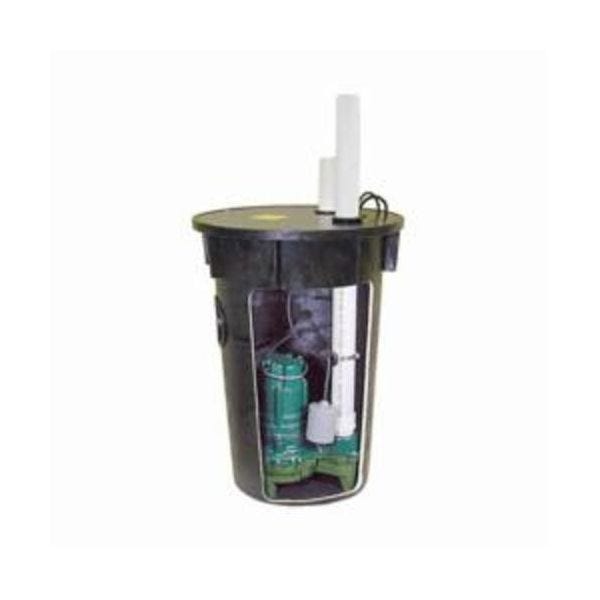

Zoeller® Simplex Sewage Package System, Pre-Assembled, Series: 912, 2 in Outlet, 115 VAC, 4.4 to 8.5 A, 1 ph, 19-1/2 ft Maximum Head, 41 gal, Float Switch, 2 in NPT Discharge Pipe, 60 Hz, 130 deg F, 2 in Solids Handling, Cast Iron, 2800 rpm Motor
- Easier installation
- Fast delivery
- Saved labor
- Reduced installation errors
- Premium indoor systems have a split cover for easy pump inspection, torque stops and an anti-flotation device
- Side discharge systems rated for outdoor burial-solid polyethylene structural foam lid and basin with 2 in discharge on side
- 3/16 in vent hole drilled
- 18 x 30 in simplex systems are shipped four units to a skid, 24 x 36 in are shipped individually
- All units are properly secured with a 2 in PVC discharge pipe in the basins to avoid shifting or upsetting the pump and switch mechanism
| Outlet Size | 2 in |
|---|---|
| Series | 912 |
| Motor Speed | 2800 rpm |
| Solids Handling | 2 in |
| Switch Type | Float |
| Discharge Pipe Size | 2 in NPT |
| Amperage Rating | 4.4 to 8.5 A |
| Material | Cast Iron |
| Phase | 1 ph |
| Type | Pre-Assembled |
| Voltage Rating | 115 VAC |
| Maximum Head | 19-1/2 ft |
| Specifications | 60 Hz |
| Temperature Rating | 130 deg F |
| Capacity | 41 gal |
| Brand | Zoeller |
