Zurn Industries TP220-5C-150C
3/4 150PSI 200,000 BTU
SKU
427537

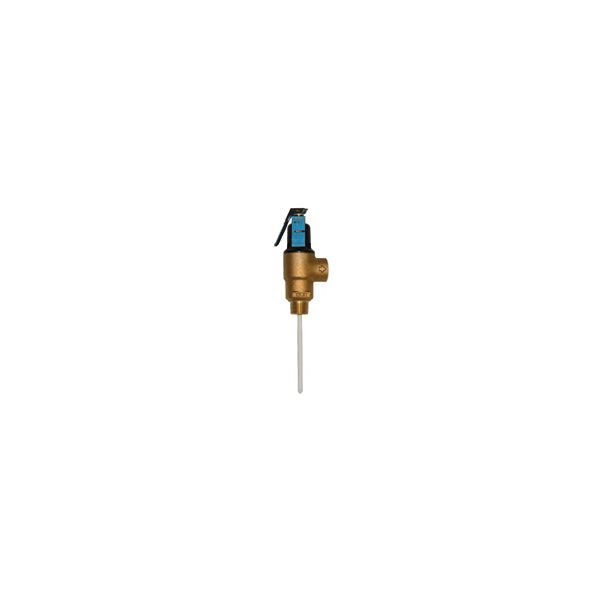

Zurn® Wilkins Temperature and Pressure Relief Valve, Series: TP220, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, 5 in Probe Length, Media: Water, 3-15/32 in Top to Inlet Center, Cast Brass/Bronze Body, Stainless Steel Spring Trim, 10-11/32 in H
- Thermal element protected
- Protects commercial water heaters from excessive pressure and temperature
| Trim Material | Stainless Steel Spring |
|---|---|
| Nominal Size | 3/4 in |
| Top to Inlet Center | 3-15/32 in |
| Probe Length | 5 in |
| Series | TP220 |
| Body Material | Cast Brass/Bronze |
| Temperature Rating | 210 deg F |
| Media | Water |
| Pressure Rating | 150 psi |
| Dimensions | 10-11/32 in H |
| End Style | MNPT x FNPT |
| Brand | Zurn |
